SPECIFICATIONS AND EQUIPMENT
STRUCTURE AND SHAPE OF HULL
The structural design of the hull has been approved by rina to further guarantee the quality of the structures, which is ensured by the use of cutting edge materials and technologies.
Grp planing keel with deadrise of 14° astern and 19° midship. Longitudinal support chines. 2 Spray rails. Fiberglass structures using multiaxial fabric with a powder binder. Infused sandwich procedure. Neopentilic and isophtalic spray gelcoat. Pvc foam is used for the sandwich panels on the bulwarks, bottom, and superstructures.
The bow collision engine room bulkheads are made of structural wooden sandwich. Use of dcpd resin in the inner layers of the hull and superstructure.
Use of vinylester resins (resistance to osmosis print through marking) for the external coats of the hull.
On the strength of these characteristics, azimut is able to offer a 5-year warranty against osmosis.
EXTERNAL

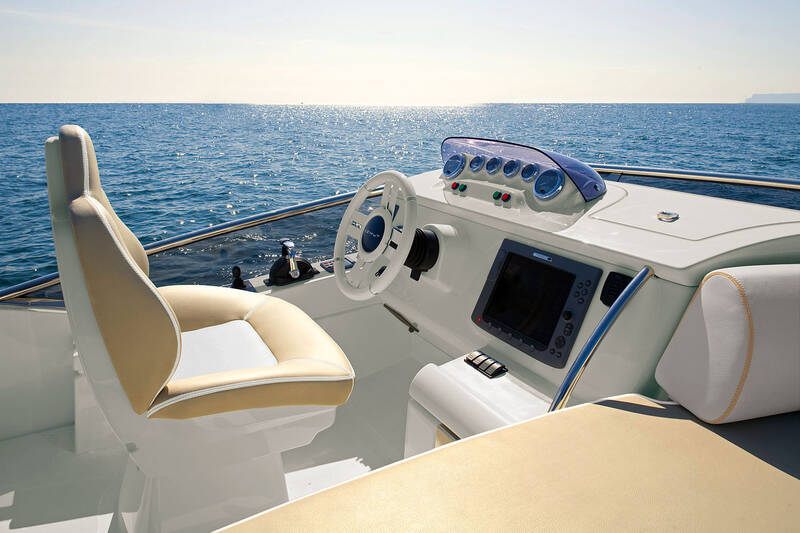

FLYBRIDGE
- Access to the fly externally via grp stairs
- Hinged access
- Aluminium hatchway
- Non skid decking
- Table with fridge and barbecue
- Raymarine bronze package
- Engine control instruments
- Rev counter
- Engines pressure gauge
- Marine gears pressure gauge
- Secondary station flap indicator
BOW
- Winch 1000W - 24V, windlass 10 mm and warping drum
- Chain winch controls
- Delta 25 kg anchor, 75m of high resistance 10 mm diameter chain on bow roller
- Anchor chain housing with drainage in the bow locker
- Chain washdown
- Stainless steel anchor nose
- 2 x Electric windscreen washers with return to idle position and washer built-in to the blade
- 2 x Stainless steel bitts
- Hatchway
WALKWAYS
- 2 x Intermediate bitts (one each side)
- Stainless steel round handrail
- Stainless steel and high shock resistant pvc rub rail
- Non skid walkways
- Windows in toughened glass housed in the grp, mirror finish
- Navigation lights
- 2 x Fuel fillers with protective cover
- One exposed fresh water filler
- Side inscription
- Exposed black water tank discharge outlet on the walkway
COCKPIT / PLATFORM
- Tempered glass saloon access double door
- Cockpit bench
- Hot and cold water shower
- Stainless steel fold away swimming ladder
- Pier socket/s
- Integrated stainless steel stern chocks
- 2 x Stainless steel bitts
- Cushion on cockpit bench
- Cockpit ceiling lights
- Marker lights on the steps of the access stairs to the platform and on the accesses to the side walkways
- Steel cockpit access gate
- 2 x Side lights on the swimming platform
- Teak lifting swimming platform
- Tender can be installed:
- Platform dimensions: 1085 x 2980 mm
- Platform net dimensions: 2.65 x 1.08 m
- Lift payload excluding teak grp and ladder: 330 kg
- Hypothetical platform tender: 2.65 x 1.5 m
INTERIOR
- Two-seater helm bench
- Stainless steel and wood height adjustable rudder wheel
- Sliding side windows
- The wheelhouse includes:
- Engine control levers
- Raymarine bronze package
- Optical and audible engine alarms
- Engine ignition keys with start and stop buttons
- Generator control (on the electric panel)
- Battery parallel
- Magnetic compass
- Bow thruster command
- Anchor winch control
- Trim tabs controls with indicators
- Diesel level gauge
- Fresh water level gauge
- Engine water temperature indicator
- Engine and marine gear oil pressure gauge
- Cigarette lighter 12V socket
- Ammeter
- Engine and boat alarms indicator lights
SALOON
- Two-seated sofa on the port side facing starboard, with cabinet on the stern side for plates, cutlery and glasses for 8 settings
- Six-seater sofa on the starboard side facing port, accompanied astern and at the bow by a table
- 1 x Folding central table, next to the starboard sofa, with manual movement
- Tv antenna system with outlets in saloon and owner’s cabin
- Autoradio cd + 2 pairs of loudspeakers (one of which watertight cockpit ceiling panel)
- Decape oak furniture
GALLEY
- Glass ceramic range with 3 hot plates and stainless steel pot holder (3 rings)
- Combi microwave oven
- Worktop with single sink, hot and cold water mixer tap
- Exhaust vent
- 190 l - 24V fridge
- Automatic multi-voltage feeder for 220V fridge
- Natural ceiling lighting through an ample glazed surface (windscreen)
DINNETE
- Dining area for 2 (4) people with folding table
OWNERS CABIN
- Direct access to owner’s services
- Double bed with folding section for luggage
- Drawer under the bed
- Mattress, pillows and bedspread
- Leather bed frame
- 1 x single door cupboard with hangers and opening mirror to the left
- 1 x single door cupboard with hangers to the right
- Panoramic windows on the bulwarks
- Hatchway
- Quality fabric bulkheads
- Led reading lights
- Carpet
- Decapé oak furniture
- Courtesy lights in the cupboards
OWNERS BATHROOM
- Access from the owner’s cabin
- Separate shower with round cubicle, thermostatic mixer and wooden grating
- Toilet system with macerator pump
- “Cognac” vetro freddo washbasin
- Wooden flooring
- Extraction (natural)
- Openable round porthole
- Bulwark hanging unit with mirror
- “Cognac” vetro freddo bathroom accessory kit
- Wooden venetian blinds
VIP CABIN (STARBOARD)
- Direct access to guest’s services
- 2 x Single beds that can be turned into a single double bed
- Mattresses, pillows and bedspreads
- Leather bed frame
- Drawers under the beds towards the amidship
- Large cupboard with hangers
- Large side windows
- Led reading lights
- Carpet
- Soft ceiling lighting
- Decapé oak furniture
- 1 x Openable porthole
GUEST CABIN (PORT)
- 2 x single beds
- Mattresses, pillows and bedspreads
- Leather bed frame
- Drawers under the beds
- Large cupboard with hangers, port side
- Large side windows
- Led reading lights
- Carpet
- Soft ceiling lighting
- Decape oak furniture
- 1 x openable porthole
VIP AND GUEST BATHROOM
- Access from the starboard guests cabin
- Round shower with 2 plexiglass doors and wooden grating
- Toilet system with macerator pump
- Shower column with thermostatic mixer and soap holder
- Bulwark hanging unit with mirror
- “Cognac” vetro freddo washbasin
- “Cognac” vetro freddo bathroom accessory kit
- Openable round porthole
- Wooden flooring
- Extraction (natural)
- Wooden venetian blinds
(*) The boat decor can be selected from the super grand luxe samples in the Azimut decor book
ELECTRIC SYSTEM
- On board voltages:
- 220V with frequency of 50Hz
- 24V dc. From battery sets
- 12V dc.
- Using high-reliability residual current circuit breakers or fuses for the protection of utilities
POWER SOURCES
SHORE POWER SOCKETS
- 1 x shore power socket 220V, 50°
BATTERIES
- 6 x AGM 90Ah batteries for service utilities (24V)
- 4 x AGM 90Ah batteries for engine ignition (24V)
- 1 x AGM 70Ah 12V battery for generator (from series 42)
- 1 x Electronic 24V 50A battery charger for the starter and services units
- 1 x Electronic 12V 10A battery charger, for the generator
- All units activated by battery cut-out relays
LIGHTNINGS
- Cabin and bathroom lights with 24V lamps. 24V dimmed light system
- 24V lighting for the engine room with fixed and portable lamps
BILGE SYSTEM
- 3 x 24V automatic electric pumps (flow rate: 224 l/min), with the possibility of manual
- override from the wheelhouse panel
- Each of the pumps is equipped with double high level switch connected to the
- optical-acoustic alarm in the wheelhouse
- 2 x Manual pumps (flow rate: 49 l/min) that pump via switch in the two watertight compartments
- Bilge discharge from engine cooling pump
FIRE EXTINGUISHING SYSTEM
- Engine battery cut-out
- Shut-off emergency button
- Closure of the fuel supply solenoid valve and engine + genset shut-off
- Ventilation shut-down
- Extinguisher outlet
- 1 x 12 Kg powder canister with diffuser nozzle for engines and marine gears (canister approved for the Italian market in line with directive 94/25/ec, ISO9094)
FUEL SYSTEM
- 2 x 1000 l aluminium tanks
- 2 x Diesel filler caps on the deck walkway and 2 vents on the bulwark
- Tanks connected by (1”) interconnection and manual shut-off valves
- Optical level
- Wheelhouse fuel level gauge
- Delivery fuel interception via 24V (1”) solenoid valves
- Water/diesel separator filter for Racor 75/1000 fgx engines
- Diesel filter for Nauco 500 fg single type generators
- Starboard tank fuel tap
- Water in diesel alarm
FRESH WATER SYSTEM
- 1 x 590 l polyethylene tank, 1 water filler cap on the deck walkway and 1 vent on the bulwark
- 1 x 24V engine room water pressure pump (flow rate 45 l/min)
- 1 x 40 l electric water heater 220 V (or 110 V), in the engine room
- The system can be sectioned by means of manifolds
- Hot and cold running water in all bathrooms, galley and cockpit, distributed via single control mixers
- Cold water line to engine room
- Hot and cold water shower on the platform
GREY WATER SYSTEM
- Pvc overboard discharge manifolds
- Owner’s and guest’s bathroom discharge into tank
- 225 l polyethylene main tank
- The discharge of the grey water tank can be performed automatically by means of level sensor, or manually
- 24 V electric diaphragm pump for discharge
- Tank high level alarm in the wheelhouse
- All discharges flow into the collection tank with the exception of the crew cabin that discharges directly overboard
BLACK WATER SYSTEM
- Toilet system with macerator pump
- Fresh water toilet washing system
- All toilets discharge directly into a collection tank
- Maceration pump for overboard discharge from the collection tank
- The tank discharge is manually controlled
- 1 x 225 l polyethylene collection tank
- Emptying of the tank also by suction from the deck walkway
- Valve for direct discharge into the sea
SEAWATER SYSTEM
- Two engine seawater intakes in bronze, with shut-off valve and mesh filter
- One generator (1”) seawater intakes in bronze, with shut-off valve and mesh filter
ENGINE GAS EXHAUST
- Gas discharge system: immersed engine exhaust and minimum by-pass
- Insulated stainless steel drain manifolds
- Exhaust pipes: structural grp muffler
- Water/fumes separators for generator with side exhaust
- Engine room
- Immersed exhaust system with by-pass
- Two engine exhaust pipes with structural grp muffler
- Insulated stainless steel drain manifolds
- Minimum by-pass pipe for the discharge of exhaust with the boat stationary or at low speed
- Water/fumes separator for generator with side exhaust
- Soundproofing
VENTILATION AND EXTRACTION SYSTEM
- Engine room air intake with filter
- 1 x Extractor
- 2 x ventilators
ACCESSORIES
- Electric side power 24V, 6 Kw / 8 Hp bow thruster
EQUIPMENT
- No.1 Boathook
- No.6 Fenders; housing: anchor locker
- Cushions
- Window cover drapes
- Black net windscreen and side window drapes
- Plates, glasses and cutlery set for 8 people
- Mooring lines (5 lines, 16 m long and 20 mm diameter)
