New motor yacht

Atlantis 45

Download brochure

Leave a request

770 000

Price

ex-VAT | without options

Tax status

14.61 m

Length overall

2026

Built

Italy

Country

View full specification

Contact us

You may also contact us in a most convenient form for you - call or write our Manager directly in a messenger to ask your question.

Azimut Yachts Montenegro

O8, BC Ozana, Porto Montenegro, Tivat, Montenegro

+382 69 237 700

Conditional Survey and Seatrial

Inspection and sea trial of Atlantis 45 are subject to MYBA terms and conditions. For detailed and up-to-date information on this vessel, please contact us by filling in your contact details in the request form.

Best Interior Design Trophy (category 45-64 feet)

Atlantis 45

Specification

770 000

Price

ex-VAT | without options

Tax status

14.61 m

Length

Italy

Country

2026

Built

Azimut Yachts

Builder

GRP

Material

Gross tonnage

14.61 m

Length overall

12.79 m

Hull length

0.00 m

Waterline length

0.00 m

Beam

4.20 m

Beam overall

0.00 m

Height

3.24 m

Height above waterline

1.10 m

Draft

0.00 m

Draft on keel

2 x Volvo D6 IPS 650 - 480 hp

Engines

m/h

Engine hours

1 000 l

Fuel capacity

350 l

Water capacity

33 knot

Maximum speed

28.00 knot

Speed

0 l

Gray water tank

106 l

Holding tank capacity

210 nm

Range

0.00 l

Factory ballast capacity

12.99 t

Dry displacement

16.60 t

Displacement

Passenger capacity

4 + 2*

Berths

2 + 1*

Cabins

Head compartments

Keel

Azimut Yachts

Interior design

Neo Design

Exterior styling & concept

Equipment

Exterior

Hull and Deck

Accessories in AISI 316 stainless steel
21 Kg anchor and 40 m chain in galvanized steel (Ø 8 mm)
Horn
Stainless steel central cleats (2)
Stainless steel stern cleats (2)
Stainless steel bow cleats (2)
Hatch with mosquito net and blind
Rub-rail with rubber edge
Windows in fore cabin (hull) and dinette in Plexiglas; windows in aft cabin in stratified glass
Self-draining anchor chain locker with fender storage lockers (2)
Hard GRP top with electric sliding roof in fabric and stainless steel frame
Navigation lights
Stainless steel portlights with mosquito net
Windscreen in tempered glass (single piece)

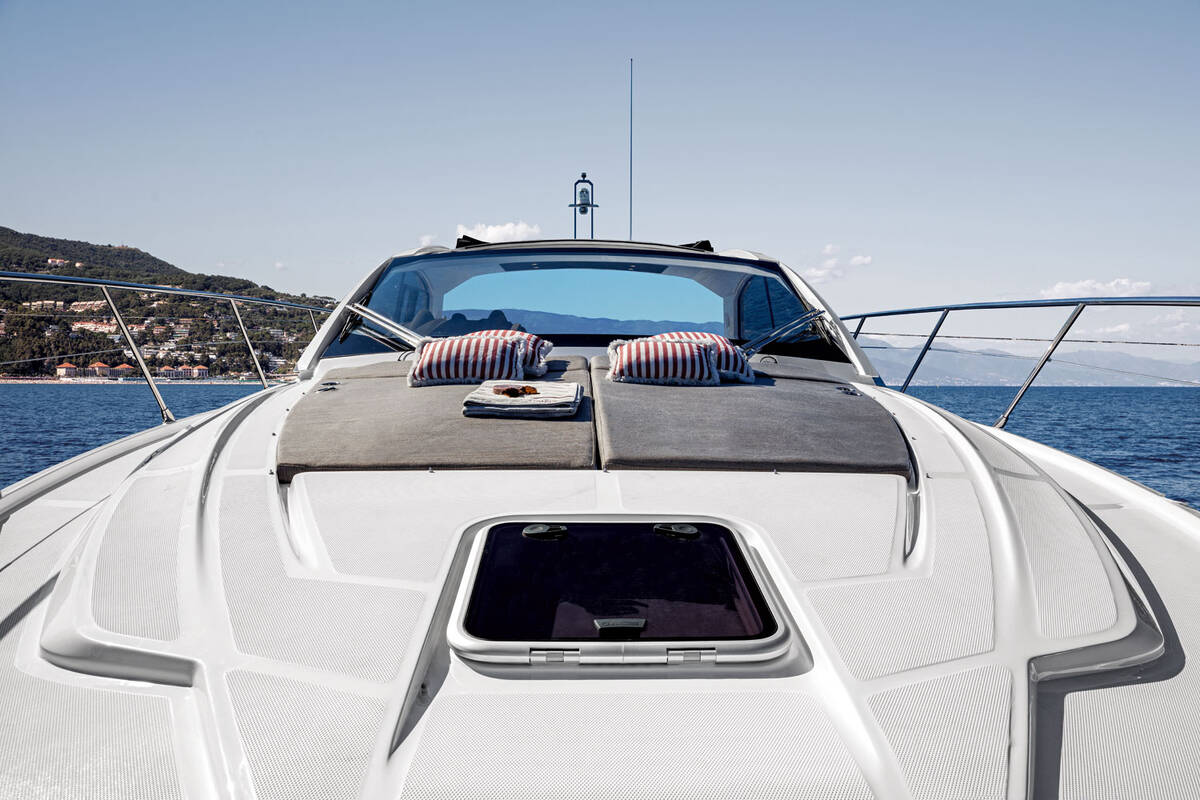

Bow area and walk arounds with non-slip covering
Glass-holders and storage compartments

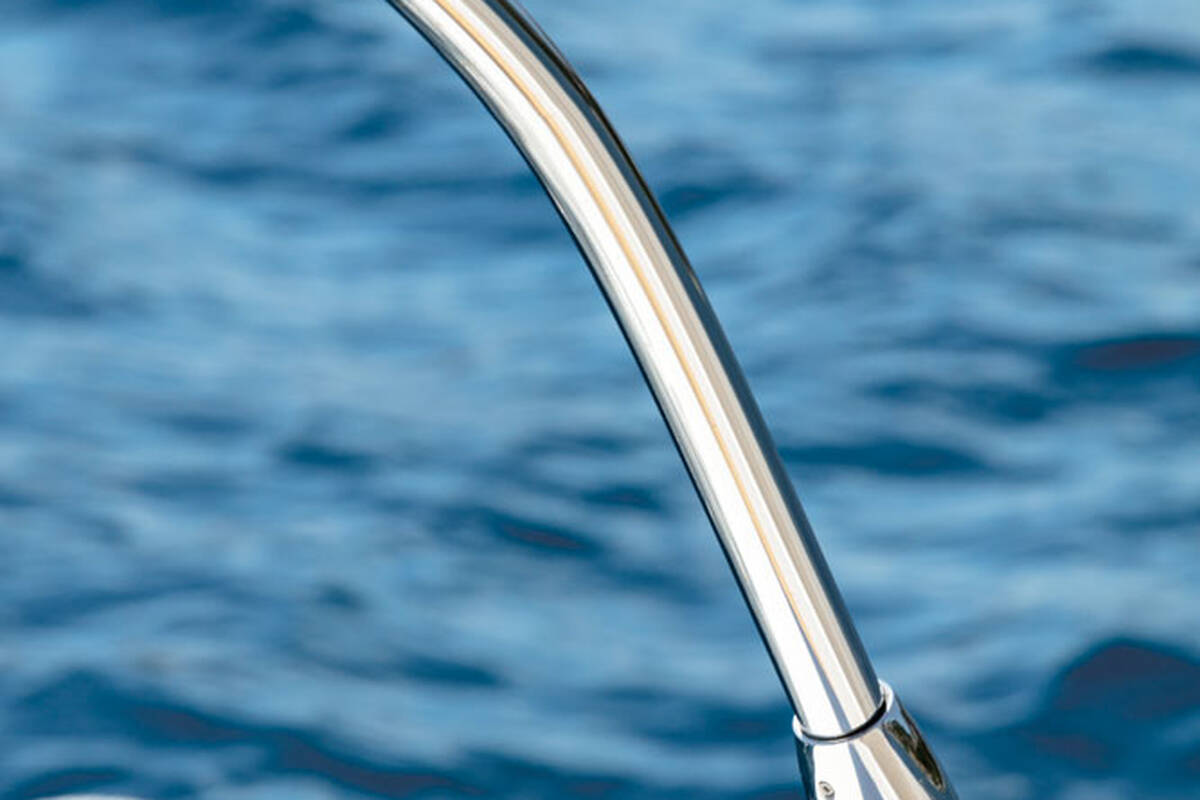

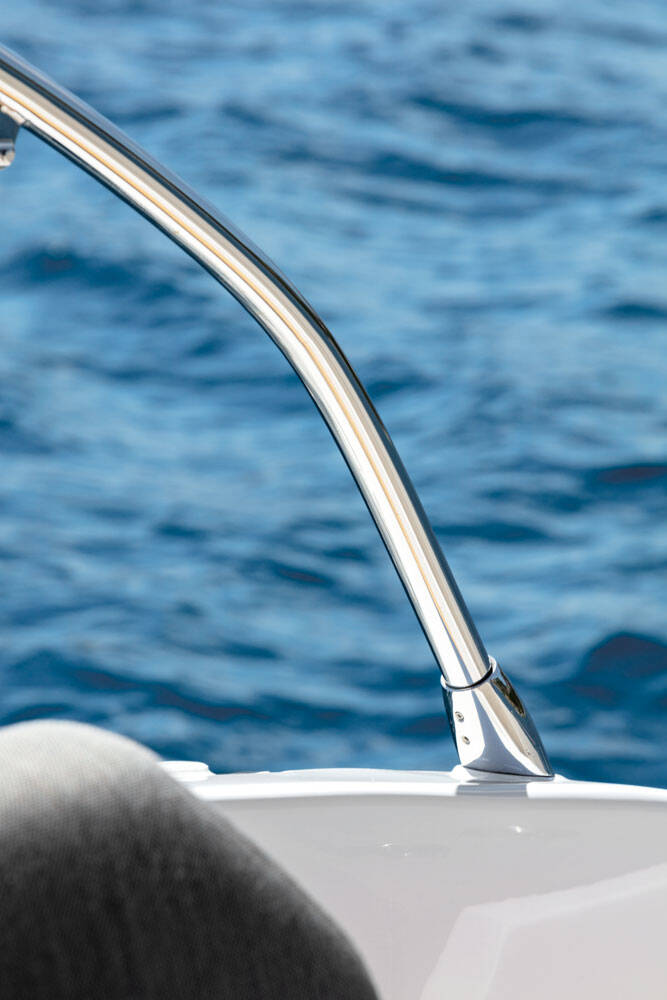

Stainless steel handrails/grabrails
Stainless steel supports for lights and flag pole
Diesel tank vent with anti-flame and anti-spray mesh protection
Stainless steel refueling plugs (2)
Stainless steel water refill cap
2 windscreen wipers with washer
1000 W winch/anchor winch with remote control

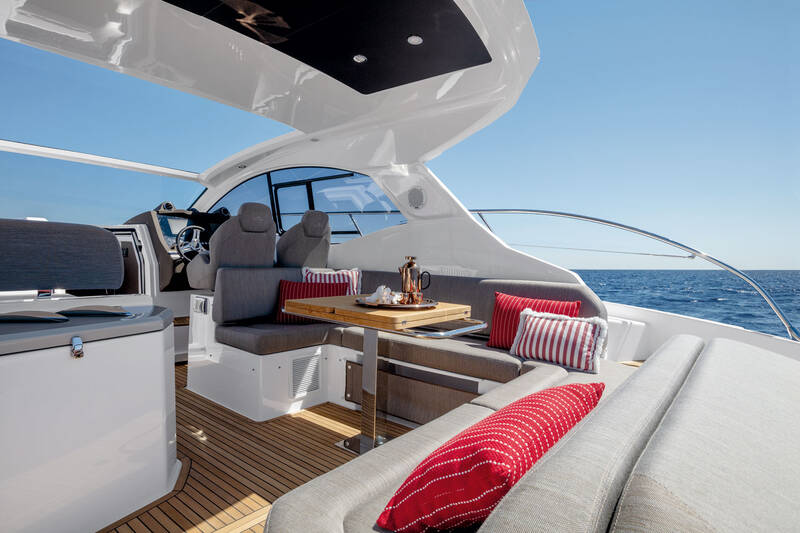

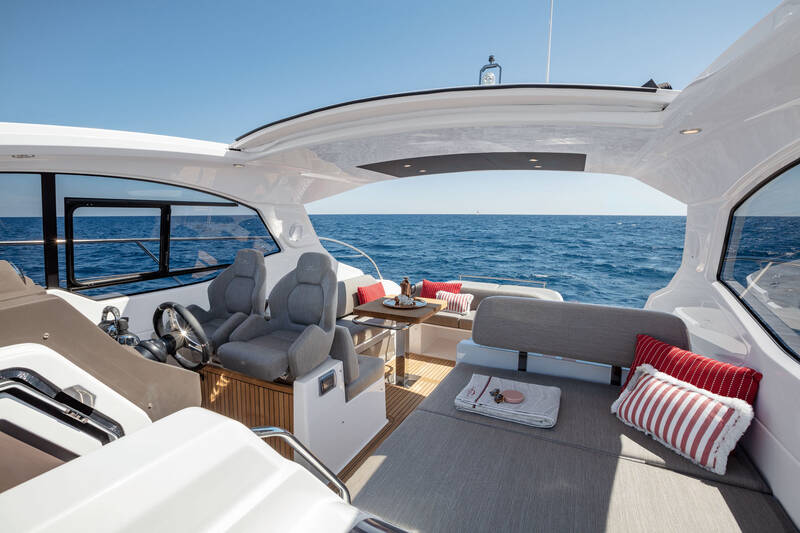

Cockpit

Access door to engine room
Hard top windows with manually operated starboard opening
Stainless steel and Plexiglas aft gate with “Azimut” logo
Openable table with fixed stainless steel support
C-shaped sofa with locker for liferaft and storage compartments under bench

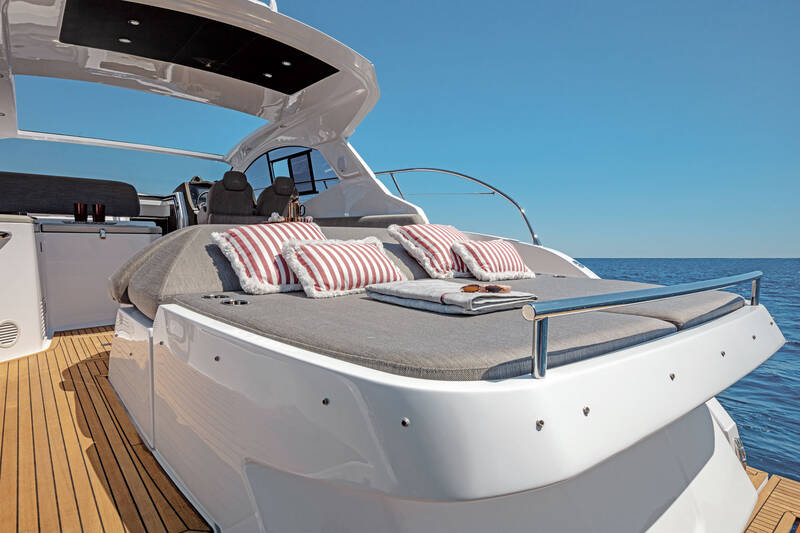

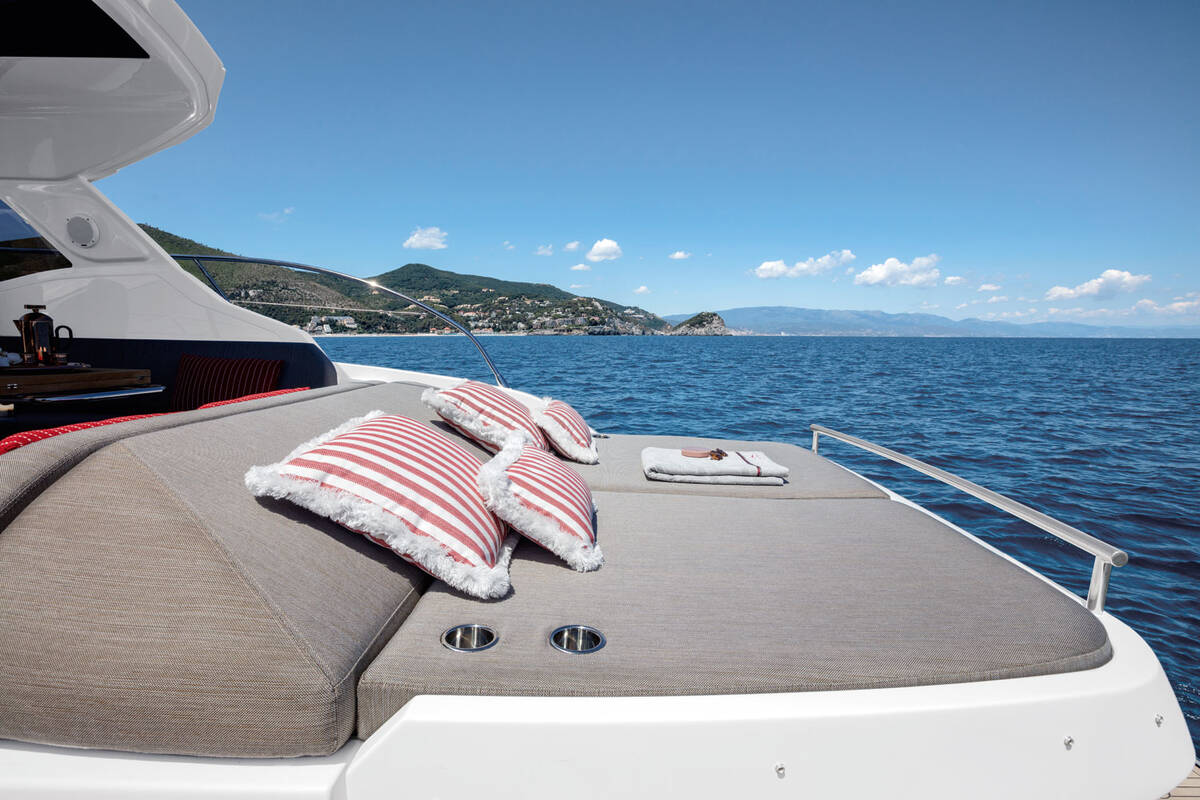

Convertible stern sunbed area with cup holders (4) and fender holders under cushions
Port area (steering system side) with convertible bench, cup holders (2) and storage compartments
Motor-operated garage for 2,1 meter tender
Cockpit storage unit with GRP sink and stainless steel mixer tap,and 50-liter GRP refrigerator
Non-slip cockpit floor and bathing platform (fixed)
Shore water intake
Waterproof Radio with loudspeakers (2)
Retractable swimming ladder (manual) with grabrail on platform
Sliding hatch in Plexiglas with fastening system
Stainless steel handrails/grabrails
Shower with mixer tap (1)
LED lighting
Shore power socket

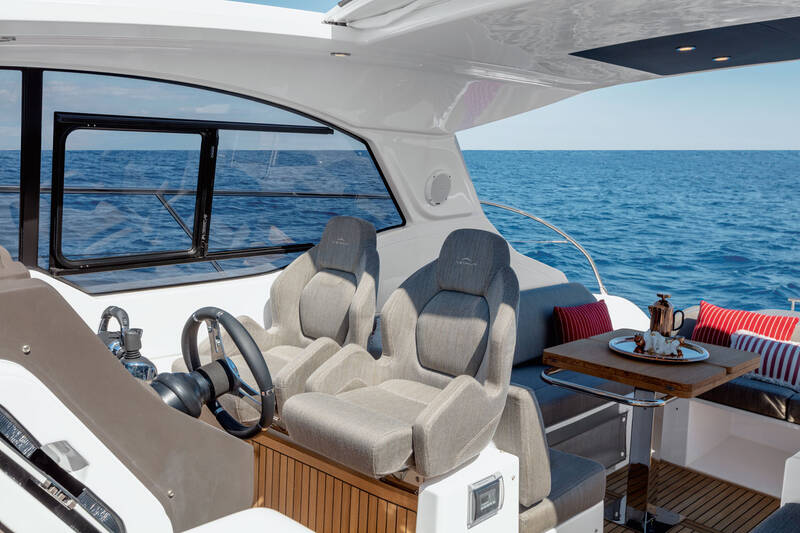

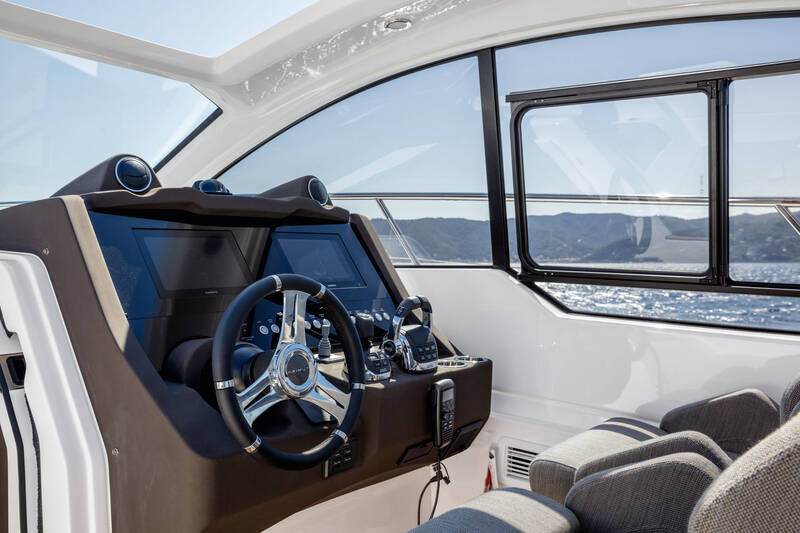

Whellhouse

Dashboard with anti-glare mat paint finish
Pilot and co-pilot bench,pilot single seat (from serial No.081)
Navigation instruments:
- bilge alarms
- magnetic compass
- electronic engine throttles
- watertight switches
- shore power indicator
- Display 4’’ (2) for engine data, fuel level, fresh water level, echo sounder, speed, engine settings and water temperature
- Engine management software with computerized tripping, synchrony between engine throttles and z-drive auto trim
Electronic steering system with adjustable leather-covered stainless steel steering wheel
Extinguisher activation handle in engine room
Footrest and foldaway step
Cup holders (2) with storage compartment
1 kg fire extinguisher
12V socket (1)

Interior

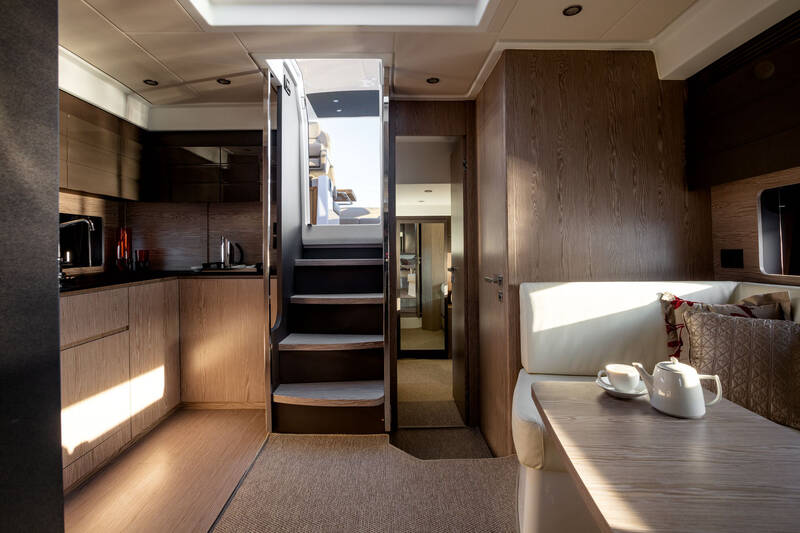

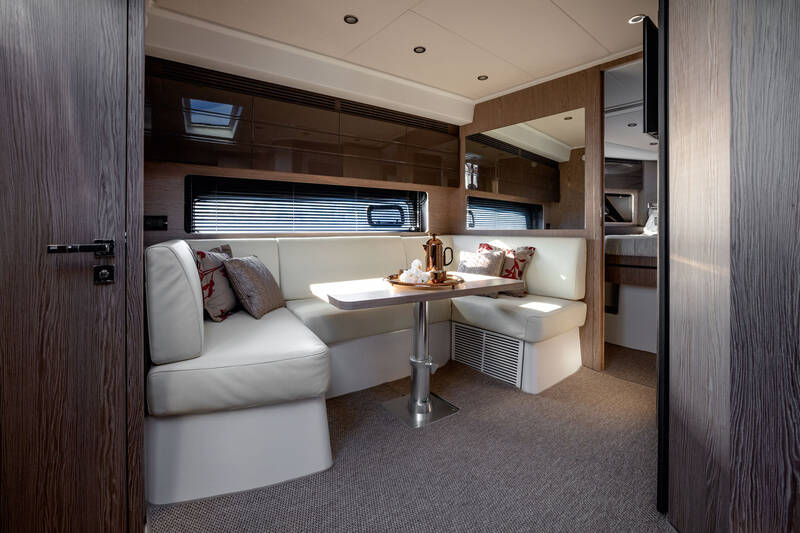

Dinette

Mirror on bulkhead
Sofa covered in cotton
"Striped walnut" steps on access ladder
Panoramic window with stainless steel porthlight and mosquito net
"Striped walnut" table with fixed stainless steel support
Stainless steel access step handrails (2)
Varnished wall units
Loudspeakers (2)
LED lighting
Socket
Aluminum Venetian blind

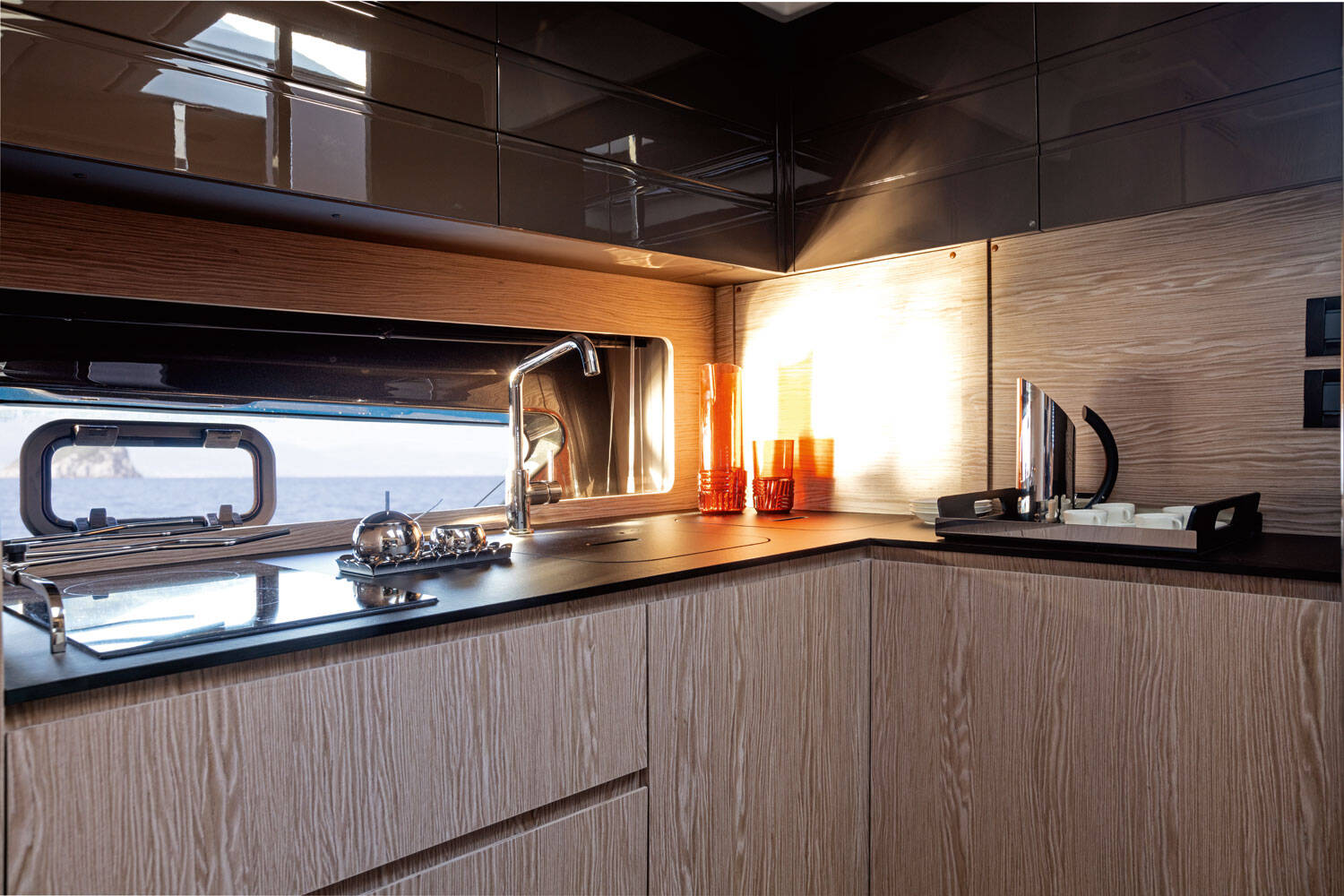

Galley

Microwave oven
195 liter refrigerator/freezer
Stainless steel sink with mixer tap
Panoramic window with stainless steel portlight with mosquito net
Storage beneath worktop, and varnished wall units
2-burner range
Laminate worktop
Master and Slave electric panels with AC/DC power circuit breakers and fuses
LED lighting
Socket
1 kg fire extinguisher

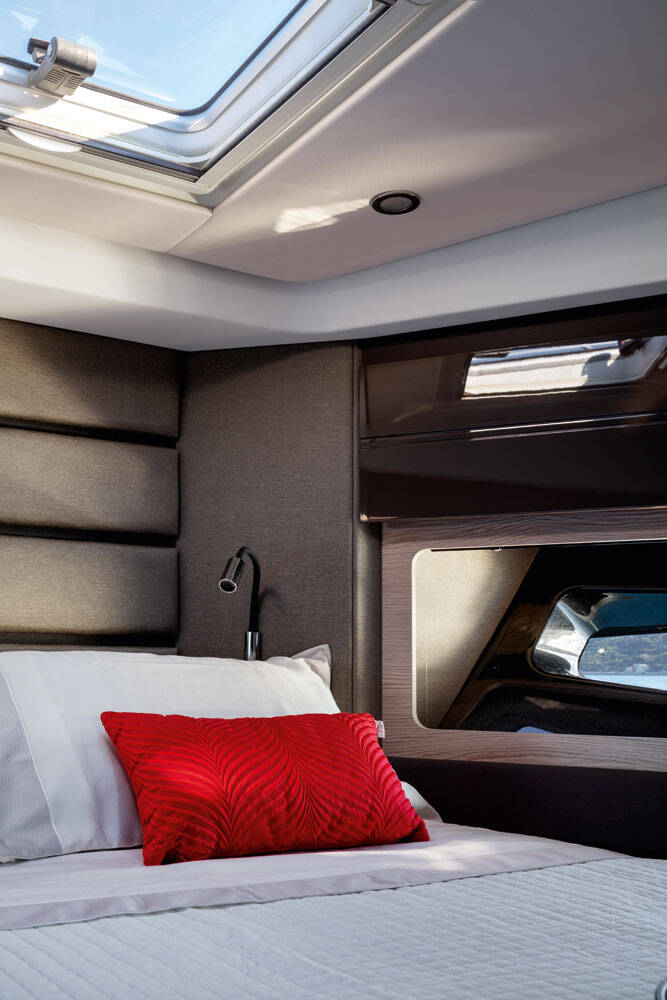

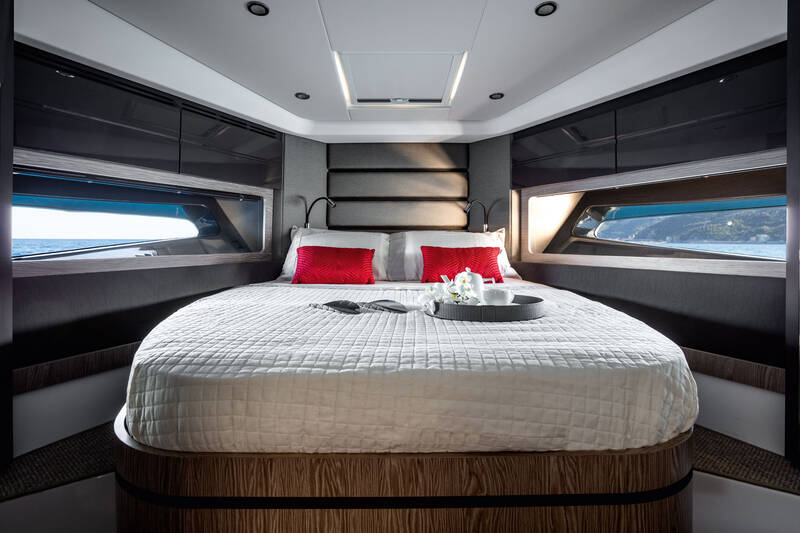

Owner's cabin (bow)

Double wardrobe on port side, with hanger bar and mirror
Starboard wardrobe with shelves and mirror
Panoramic windows (2) with stainless steel portlights (2) and mosquito nets
Double bed with mattress and bedspreads, reading lights
Bed frame in wood, with GRP locker beneath the manually lifted base
Fabric-upholstered headboard
Varnished wall units on the bulwarks
Sockets
LED lighting
1 kg fire extinguisher
Aluminum Venetian blinds (2)

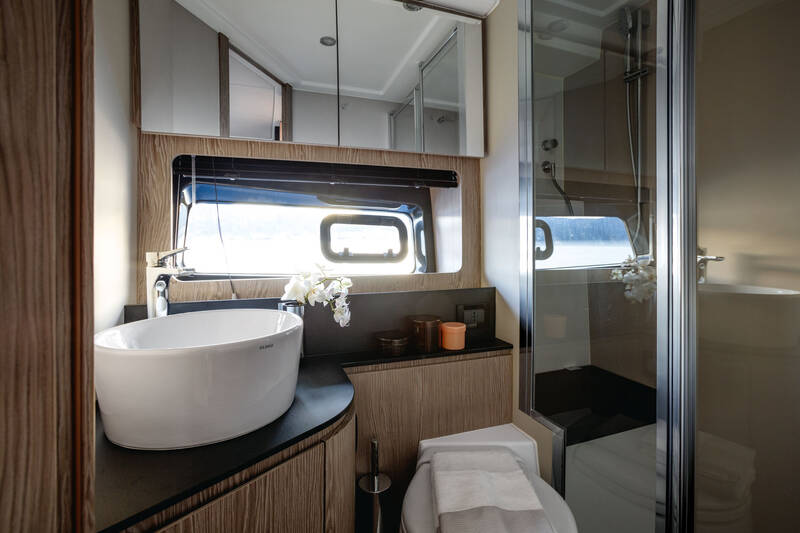

Owner's head

Separate shower stall in tempered glass with seat and storage unit
Non-slip striped walnut floor in shower
Shower mixer tap with flexible adjustable extension
Unit with washbasin and mixer tap
Stainless steel portlights with mosquito nets
Wall units with mirrors
Complete head accessories set
Electric toilet flushing system with fresh water
LED lighting
Socket
Aluminum Venetian blind

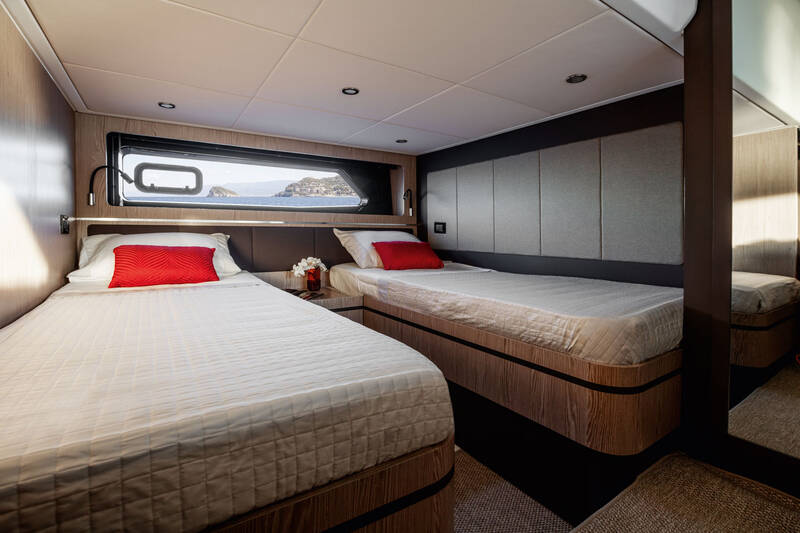

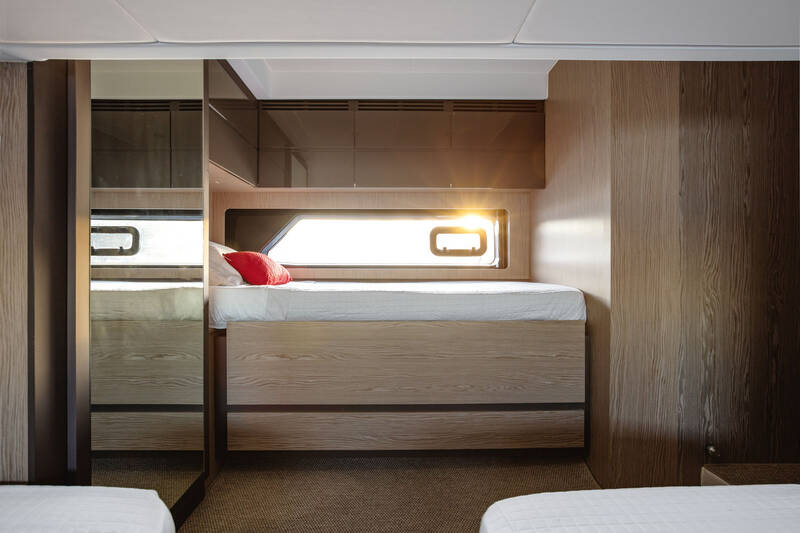

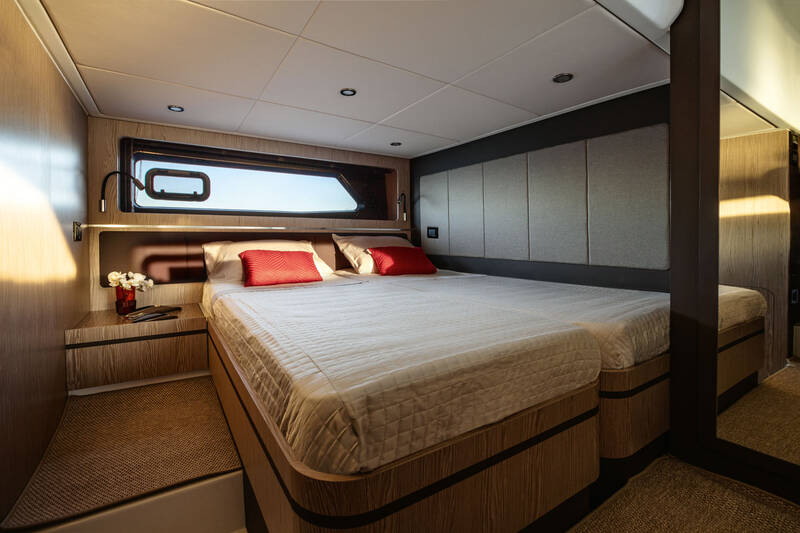

Guest cabin (stern)

Wardrobe with hanger bar and mirror
Panoramic windows (2) with stainless steel portlights (2) and mosquito nets
Reading lights
Varnished wall units,and chest on port side
Two single beds (can be joined to make a double) with bedspreads, and storage underneath mattress
Fabric - upholstered headboard
LED lighting
Sockets
1 kg fire extinguisher
Aluminum Venetian blinds (2)

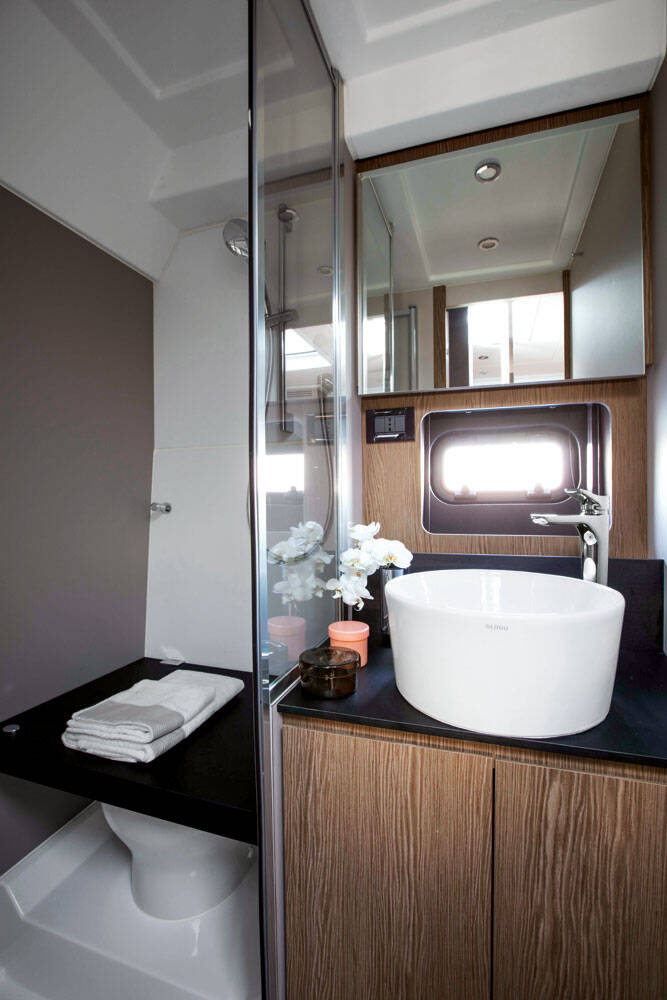

Guest head

Separate shower stall in tempered glass, with seat
Non-slip striped walnut floor in shower
Shower mixer tap with flexible adjustable extension
Unit with washbasin and mixer tap
Stainless steel portlights with mosquito nets
Wall units with mirrors
Complete head accessories set
Electric toilet flushing system with fresh water built into shower unit
LED lighting
Socket
Aluminum Venetian blind

Systems
Electrical system

Engines battery 12V – 100Ah (2)
Service battery 12V – 100Ah (2)
Automatic battery charger 12V – 60 Ah
Ventilated battery compartments
Electric battery cut-out controls on electric panel
Switches for selecting shore or generator power supply
Galvanic current insulation system
Digital indicator of DC power supply
Service/engine battery parallel control in wheelhouse

Water supply and bilge system

Bilge alarm for internal rooms and engine room, with visual and sound indicator in the wheelhouse
60-liter water heater
Bypass for direct fresh water shore connection
Electronic pressure pump with filter
Automatic electric bilge pump for internal compartments with controls in wheelhouse (2)
Automatic electric bilge pump for engine room with control in wheelhouse (1)
Manual bilge pump for internal compartments (1)
Manual bilge pump for engine rooms (1)
Fresh water tank (350 liters)
Grаy water tank with separate discharge pump

Fuel system

Solenoid valves on the feeder lines, to immediately stop the fuel flow
Diesel settling filters (2)
Fuel tanks (2 x 450 liters) with visual indicator in the engine room and electronic indicator in the wheelhouse

Engine room

Portable lamp
Automatic and manual fire extinguishing system
Thermal/acoustic insulation
Complete cathode protection for fuel tanks, seawater intakes,etc.
Safety valves on the seawater intakes
Natural engine room ventilation
Socket

Equipment

1 telescopic boat hook
2 anchor lines
18 m fender lines
1 anchor chain stopper
6 fenders
6 black fender covers
1 Owner's Manual
1 AZIMUT document holder
1 wooden model of the boat
1 AZIMUT warranty service booklet
2 floating key-rings
1 bag (with logo) for storing the manuals
1 remote control holder (with logo)
