M/Y YES
3

Cantiere delle Marche NAUTA AIR 86

Download brochure
Leave a request
3 950 000
3 500 000
Asking price
VAT paid | Flag - GB
Tax status
27.15 m
Length overall
2014
Built
Italy
Country
View full specification

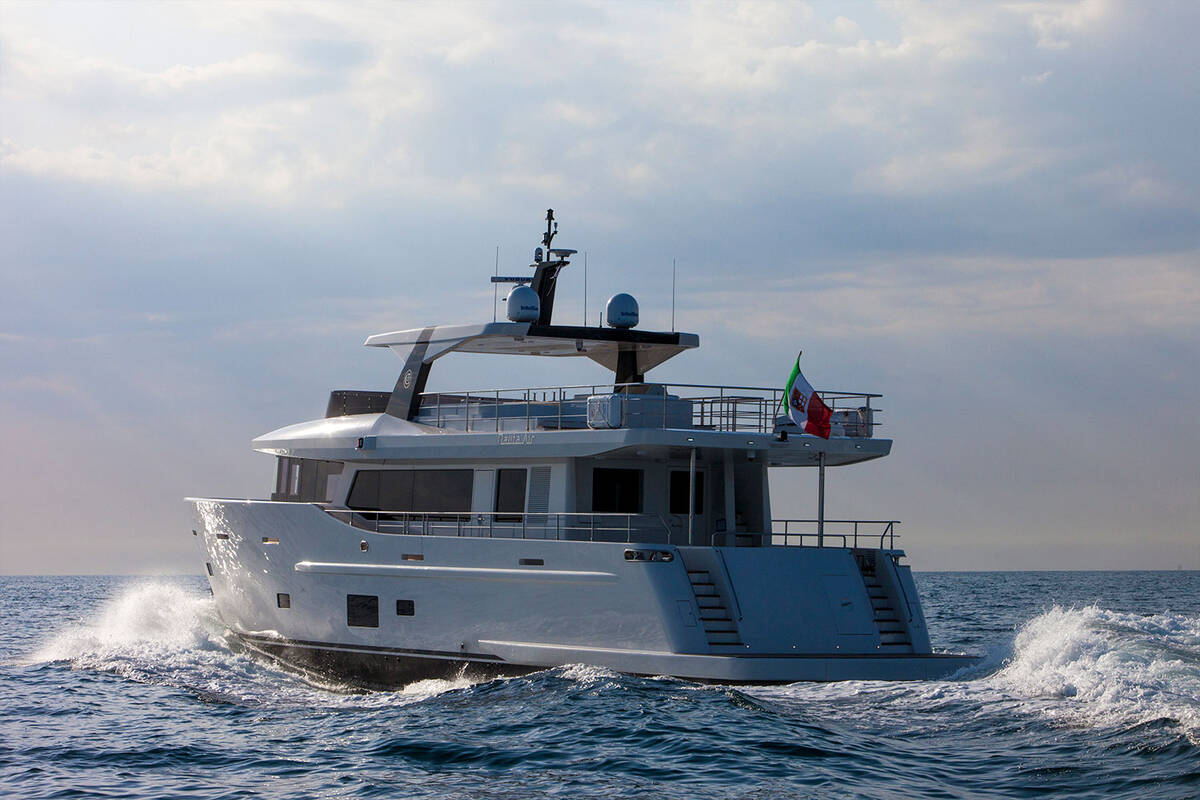

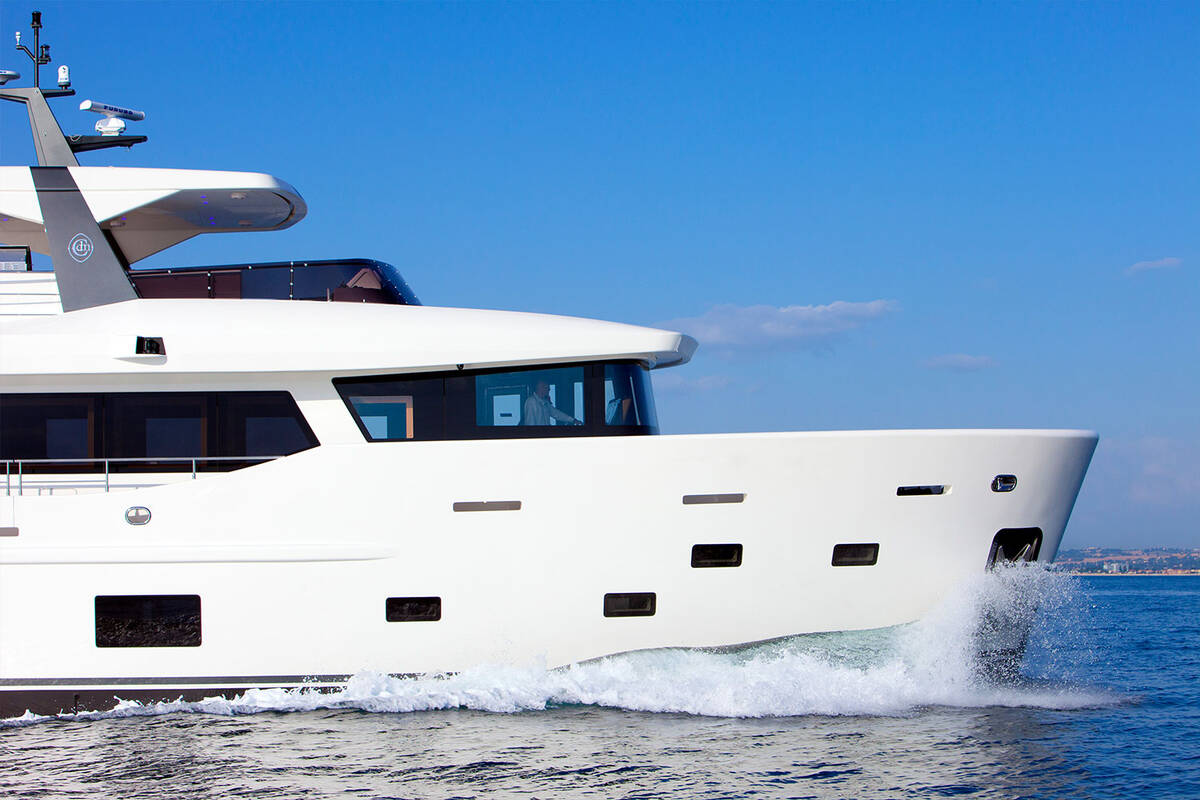

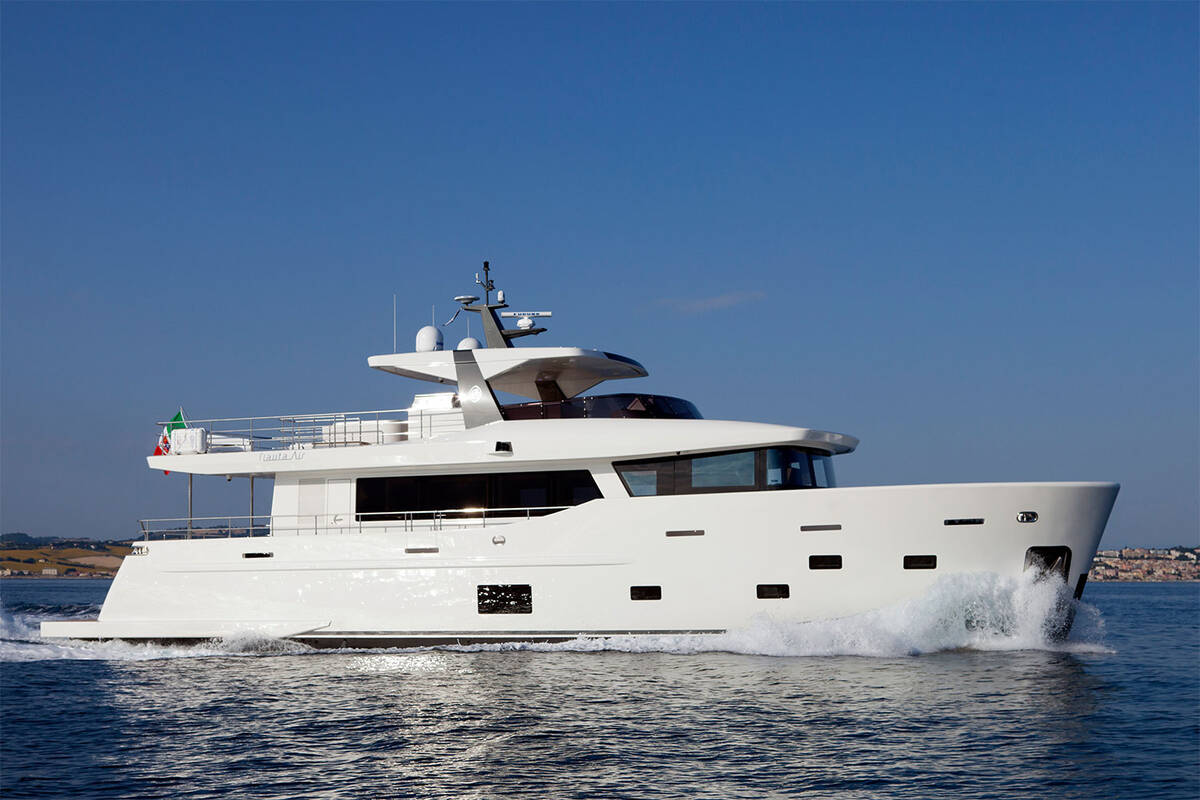

Her exterior lines have designed by award winner Nauta Design while her hull has been shaped by HydroTec, giving her a top speed of 16 knots and Atlantic crossing range of 4.000 nm at 9knots. Her hull efficiency is also proved by the fuel consumption boasting an impressive 80 l/h per engine at 13 knots and 40 l/h per engine at 10 knots. She features 4 guest cabins on lower deck, of which stand out the 24 sq mt full beam Owner cabin with big windows and dedicate stairwell and the very lightful
Read more

Conditional Survey and Seatrial

Inspection and sea trial of Cantiere delle Marche NAUTA AIR 86 are subject to MYBA terms and conditions. For detailed and up-to-date information on this vessel, please contact us by filling in your contact details in the request form.

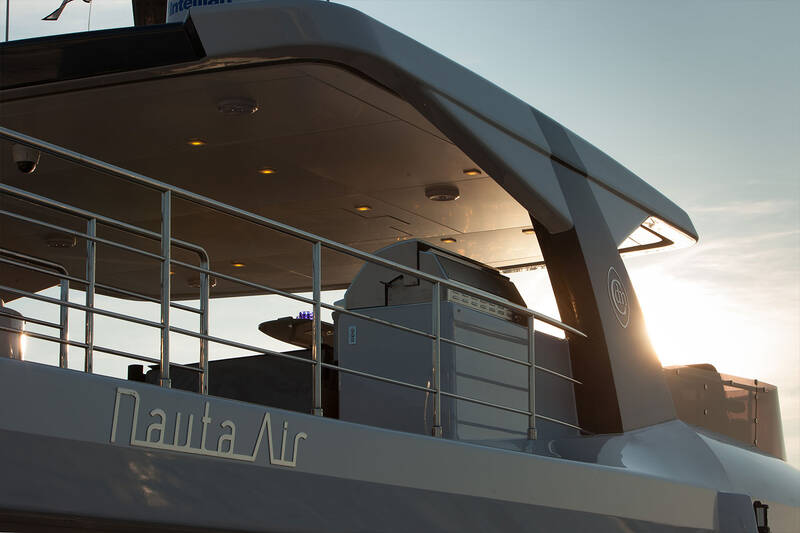

About the Yacht Cantiere delle Marche NAUTA AIR 86



Her exterior lines have designed by award winner Nauta Design while her hull has been shaped by HydroTec, giving her a top speed of 16 knots and Atlantic crossing range of 4.000 nm at 9knots. Her hull efficiency is also proved by the fuel consumption boasting an impressive 80 l/h per engine at 13 knots and 40 l/h per engine at 10 knots.

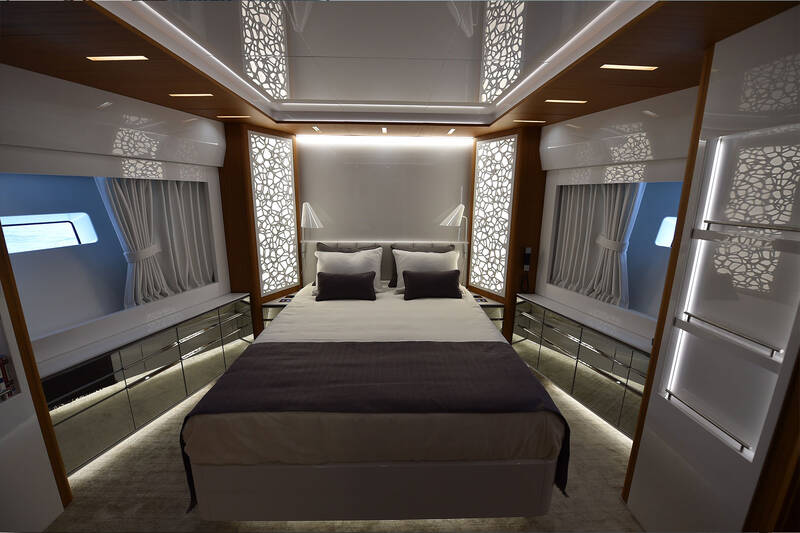

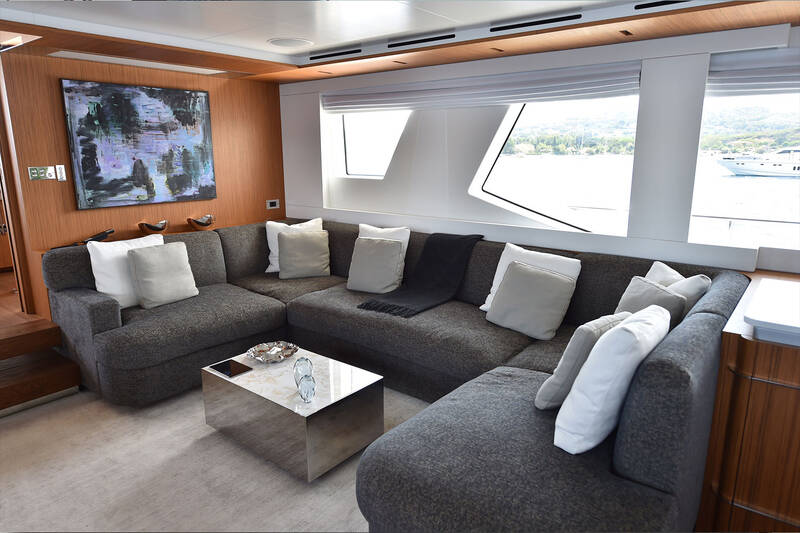

She features 4 guest cabins on lower deck, of which stand out the 24 sq mt full beam Owner cabin with big windows and dedicate stairwell and the very lightful salon, 30 sq mt wide and with an headroom of 2.10 m.

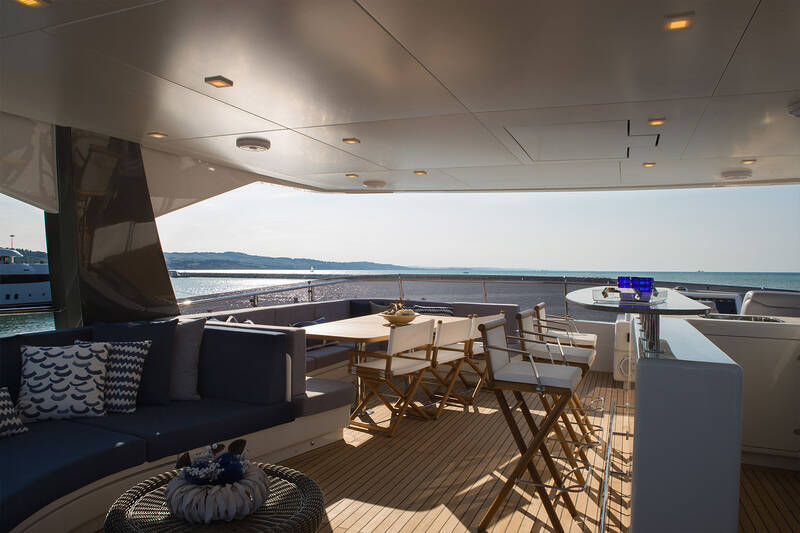

In her size range, she's definitely one with the largest sundeck. 65 sq mt of decked area with 4 different entertainment functions: sunbed, lounge, dining and conversation/bar. A large TV with drop-down system from the ceiling is available too.

The built-in Opac mare transformer allows for an easy access to the water while her fully loaded technical specification includes also a frequency converter, electric zero speed stabilization, parallel system between generators and high standard of navcom and entertainment.



Specification

3 950 000
3 500 000
Asking price
VAT paid | Flag - GB
Tax status
27.15 m
Length
Italy
Country
2014
Built
Aluminum
Material
160 t
Gross tonnage
27.15 m
Length overall
0.00 m
Hull length
23.90 m
Waterline length
6.50 m
Beam
0.00 m
Beam overall
0.00 m
Height
0 m
Height above waterline
1.65 m
Draft
0.00 m
Draft on keel
2 x Caterpillar C18 ACERT, 885 HP 500 kW
Engines
2600 m/h
Engine hours
22 000 l
Fuel capacity
2 100 l
Water capacity
16.00 knot
Maximum speed
13.50 knot
Speed
1 700 l
Gray water tank
1 000 l
Holding tank capacity
3900 nm
Range
0.00 l
Factory ballast capacity
0.00 t
Dry displacement
115.00 t
Displacement
0
Passenger capacity
9 + 4
Berths
4 + 3
Cabins
Head compartments
Keel
Interior design
Exterior styling & concept

Equipment

A detailed technical specification, a list of optional equipment and other commercial information can be provided upon request.
Detailed technical specifications, a list of installed equipment, information about seasonal and maintenance work carried out can be provided upon request.
Detailed technical specifications, a list of available optional equipment, deadlines and ability to make changes in terms of layouts, optional equipment, interior design and other commercial information are provided upon request.
General options

  • Water Maker Idromar, 360 l/hr
  • Stabilizers CMC, electrical (zero speed and underway)
  • Bow Thruster Electric, 35 kW
  • Black Water Treatment Selmar
  • Fuel Separator Westfalia
  • Toilet System Tecma
  • Boiler 1 x 150 l (1 x 40 US Gallons)
  • Air conditioning

Electrical system

  • 2 x 40 kW Kohler
  • Port diesel generator hours 5.311
  • Starboard diesel generator hours 5.299
  • Automatic parallel between generators

Navigation and communication equipment

  • Furuno Monitors 19” (No.2)
  • Furuno Navnet 3D black Box System
  • Furuno Radar Sensor UHD 64 nautical miles
  • Mapmedia Chart for Navnet 3D
  • Furuno GPS System GP-33 Color
  • Furuno network sounder and transducer
  • Hub for Navnet 3D / TZT network
  • Furuno Wind/Weather sensor and data display
  • Furuno AIS Transponder Class A
  • Furuno Satellite compass
  • Furuno Fluxgate - back-up heading sensor
  • Simrad Autopilot with repeater on flybridge
  • Furuno VHF DSC in main and flybridge helm
  • Furuno Navtex NX-700 B
  • MC Murdo EPIRB
  • Ritchie Magnetic compass in main and flybridge helm
  • Furuno Navnet TZT 14.1” for fly bridge station
  • Furuno Crew mess data repeater
  • FLIR Thermal and low light camera for night vision
  • Furuno HF/MF transceiver

Antennas

  • Antenna Intellian i6 TV SAT Antenna 60cm
  • WiFi and GSM receiver throughout the boat

Deck equipment

  • Docking Capstans Maxwell VC 3000
  • Vertical Windlass Maxwell VWC 4500
  • Anchor 2 x 140 Kg (2 x 309 pound)
  • Anchor Chain Total length of 247,5 m, diameter 12.5 mm (812 ft, diameter 0,49 inches)
  • Crane Opacmare mod. 3075/30 (500 Kg / 1100 pound max load)

Appliances
Galley

  • Miele Fridge/freezer: KFN 14827 SDED CS-2
  • Miele Fridge K14827SD ED/CS-1
  • Miele Dish Washer: G5930 Sci
  • Miele Oven H5981
  • Miele Hob: KM 6386 (230 volt 50/60 hz)
  • Miele Hood: DA3490 Marine
  • Miele Microwave oven: M 8161-2
  • Franke Grinder Model: WD 75
  • Nespresso Coffee maker
  • Icematic C35Professional ice maker
  • Miele Washer/dryer model WT 2780 WPM

Main Salon
  • No.2 Wine fridges (38 bottles each)

Master cabin
  • Mini fridge, Miele 5122 ui

Crew Area
  • Miele Fridge 5122UI
  • Nespresso Coffee machine KRUPS
  • Hob CS1212l, Extractor hood DA 2170
  • Chest size freezer, 1200*600
  • Miele washing machine professional PW6065 plus
  • Miele dryer professional PT7135C

Sun Deck
  • No.3 built in Miele fridges

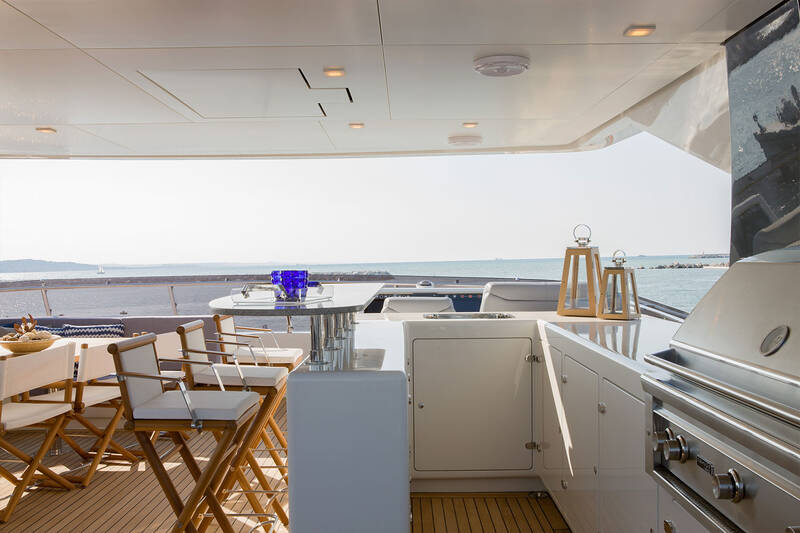

  • Built in stainless steel BBQ

Main Deck Aft cockpit
  • Miele Mini fridge K9122UI

Entertainment system
Main Salon

  • Samsung latest generation LED TV 55” with SAT TV receiver, Dune HD Smart B1 player, Sonos connect, Tablet control,
  • Air Play, B&W Speakers (No.3 200W, No.2 100W)

Owners cabin

  • Samsung LED TV 40” with SAT TV receiver
  • Dune HD Smart B1 player
  • Sonos connect
  • Tablet control
  • Air Play, No.5 B&W ceiling speakers (100W)

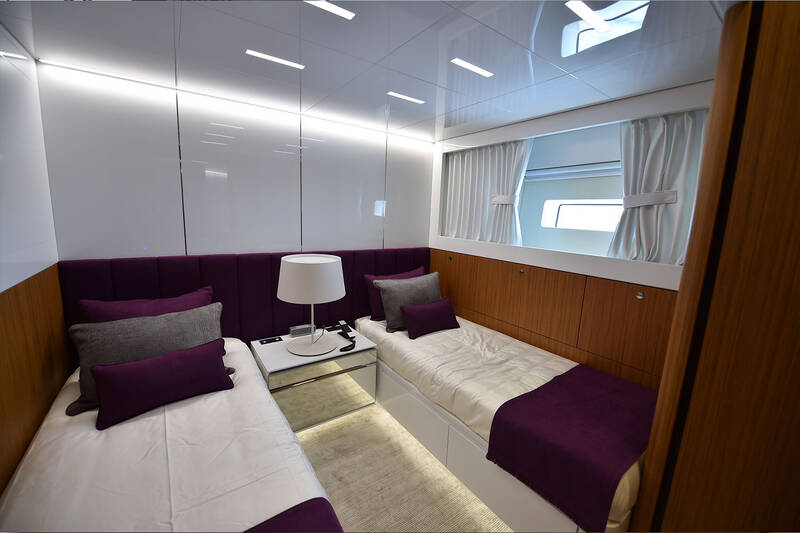

No.3 Guest Cabins
  • Samsung LED TV 28” with SAT TV receiver
  • Ceiling speakers
  • Sonos system with QNAP device with 8 docks for disks for an overall space of 32TB.

Crew Dinette

  • Samsung TV 19”

Sun Deck

  • Drop down Samsung latest generation LED TV 46” with Dune HD Smart B1 Player, SAT TV receiver, Sonos connect,
  • No.8 JL Audio 8.8” waterproof speakers

Main Deck Aft Cckpit

  • No.4 JL Audio 8.8” waterproof speakers in cockpit
  • No.1 x JL Audio 10” waterproof speakers in the cockpit,

Main Deck Forward

  • No.2 JL Audio 8.8” waterproof speakers

Tender

  • Williams 445 Jet Tender with weather proof all over cover

Other

  • Movable swimming platform Opacmare 338350, 5 steps (works as gangway)
  • N. 9 underwater lights
  • Bauer diving air compressor with 4 bottles
  • Custom made windscreen cover
  • Custom made covers for all exterior furnishing
  • Internal Intercom System

Layouts

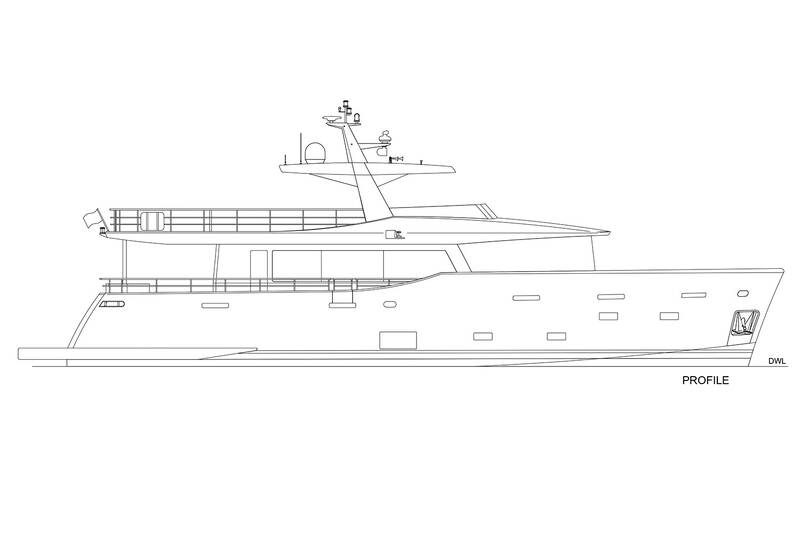

Profile

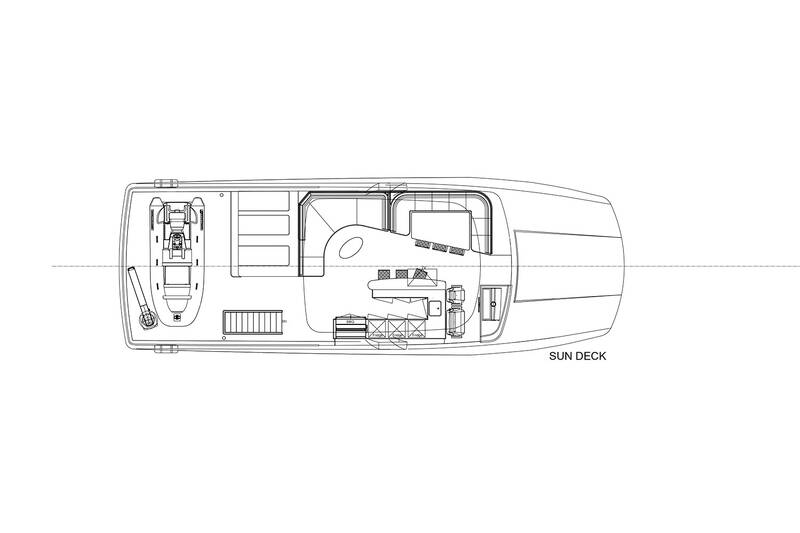

Flybridge

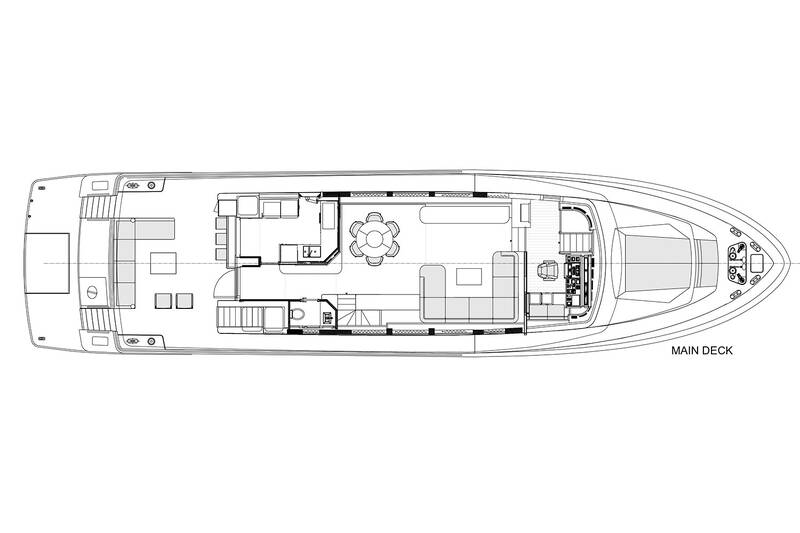

Main Deck

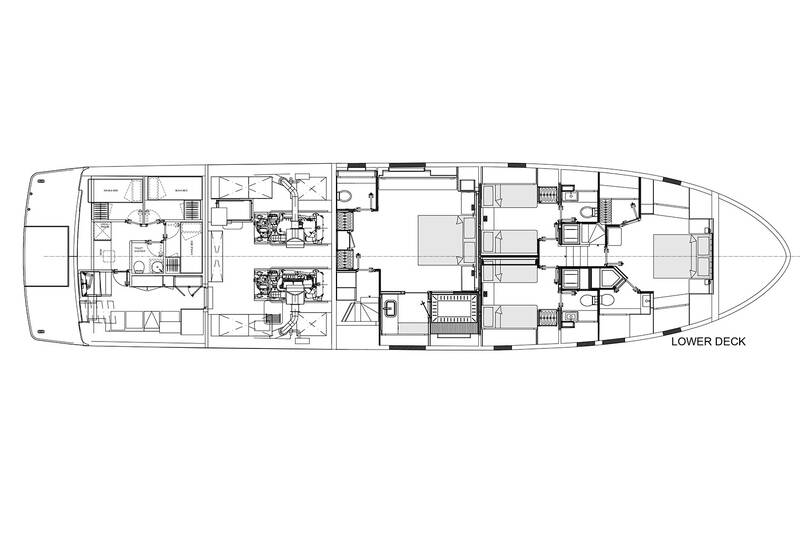

Lower Deck
View more
