New Yacht
34

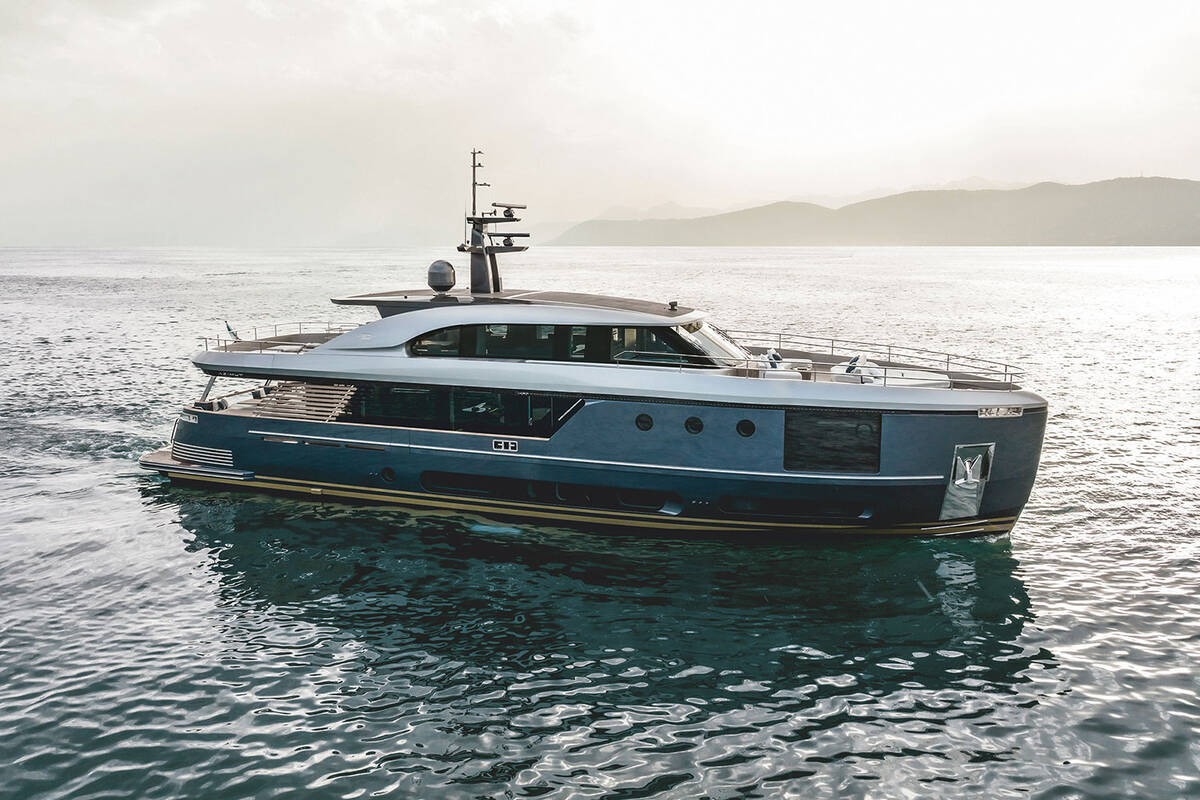

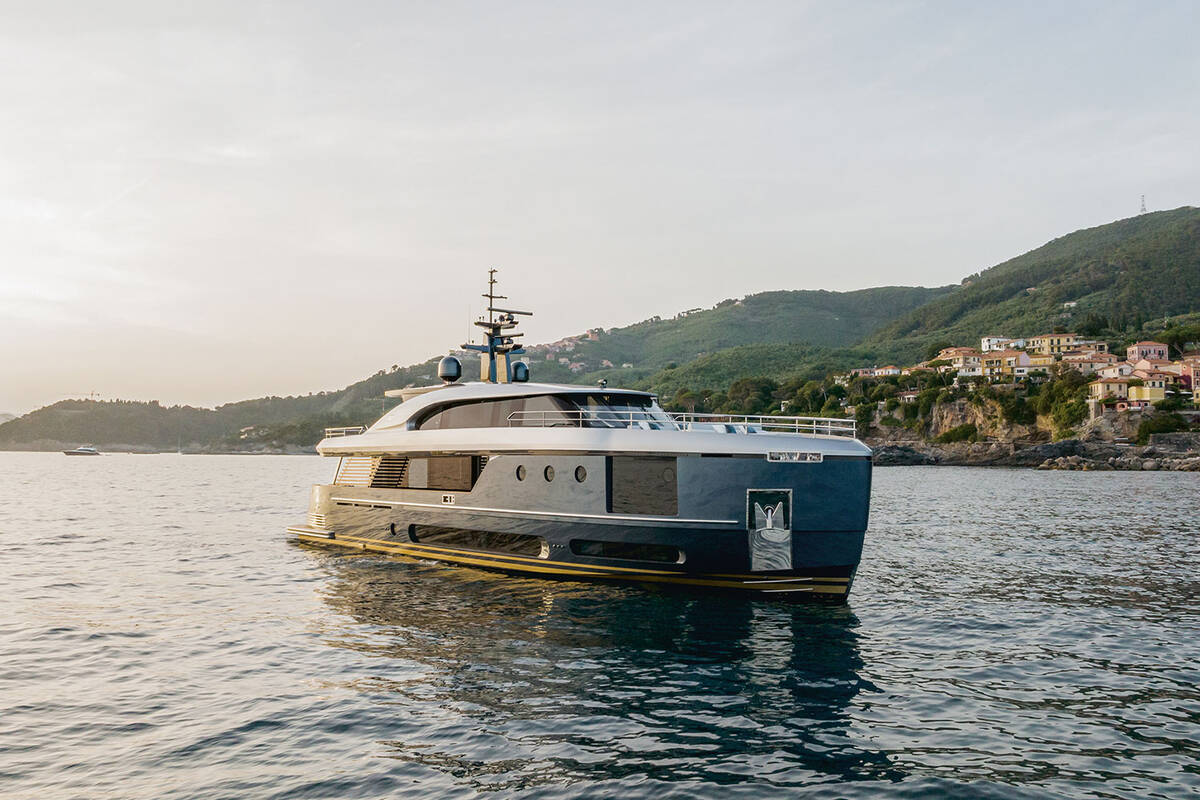

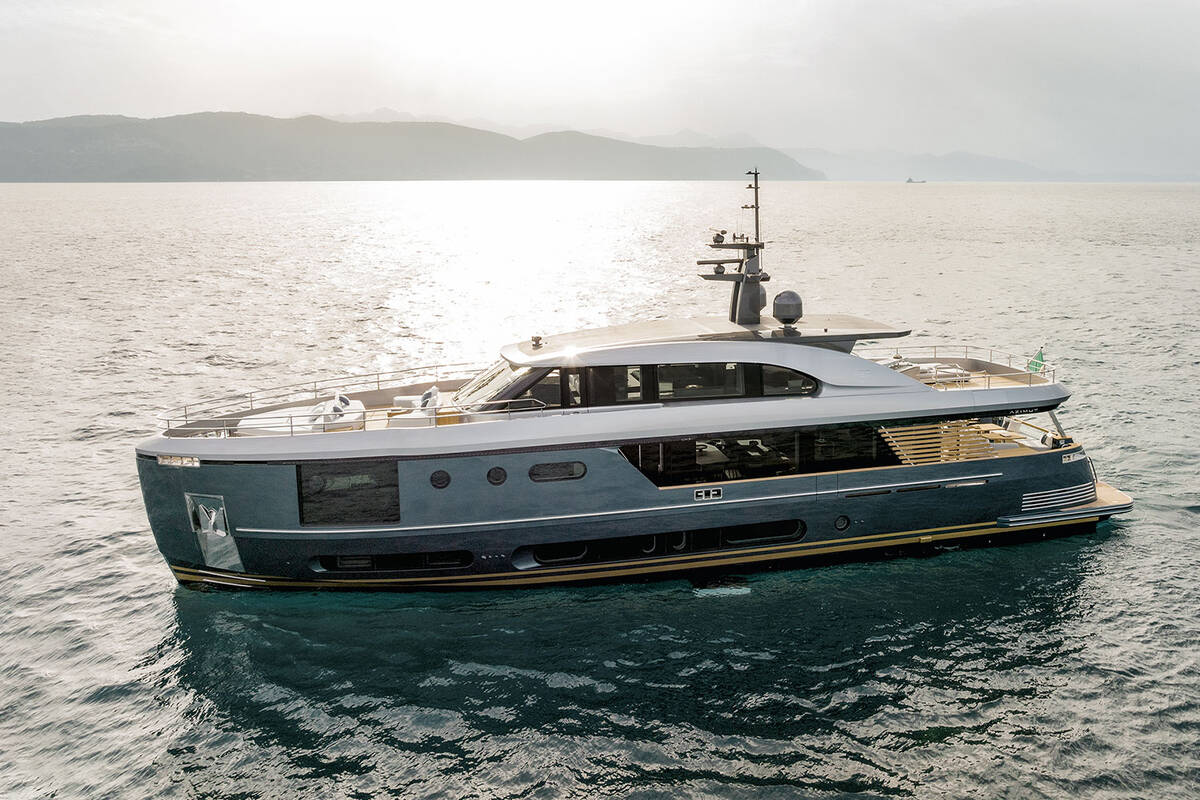

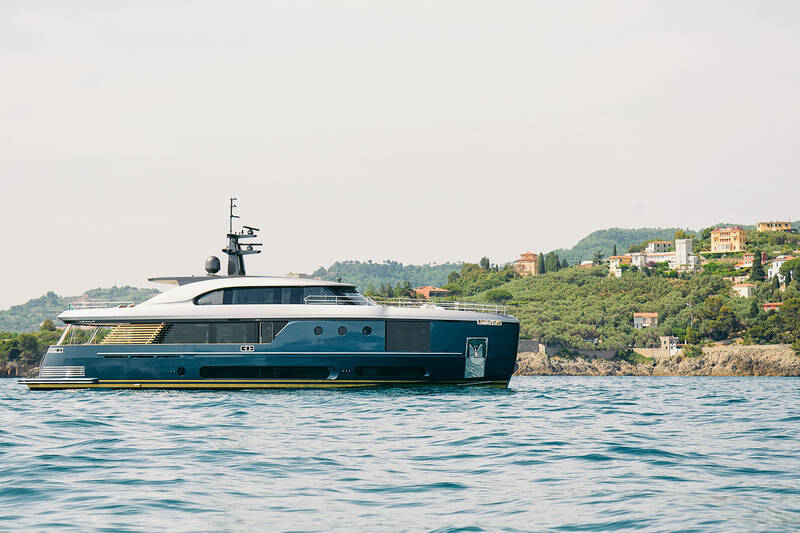

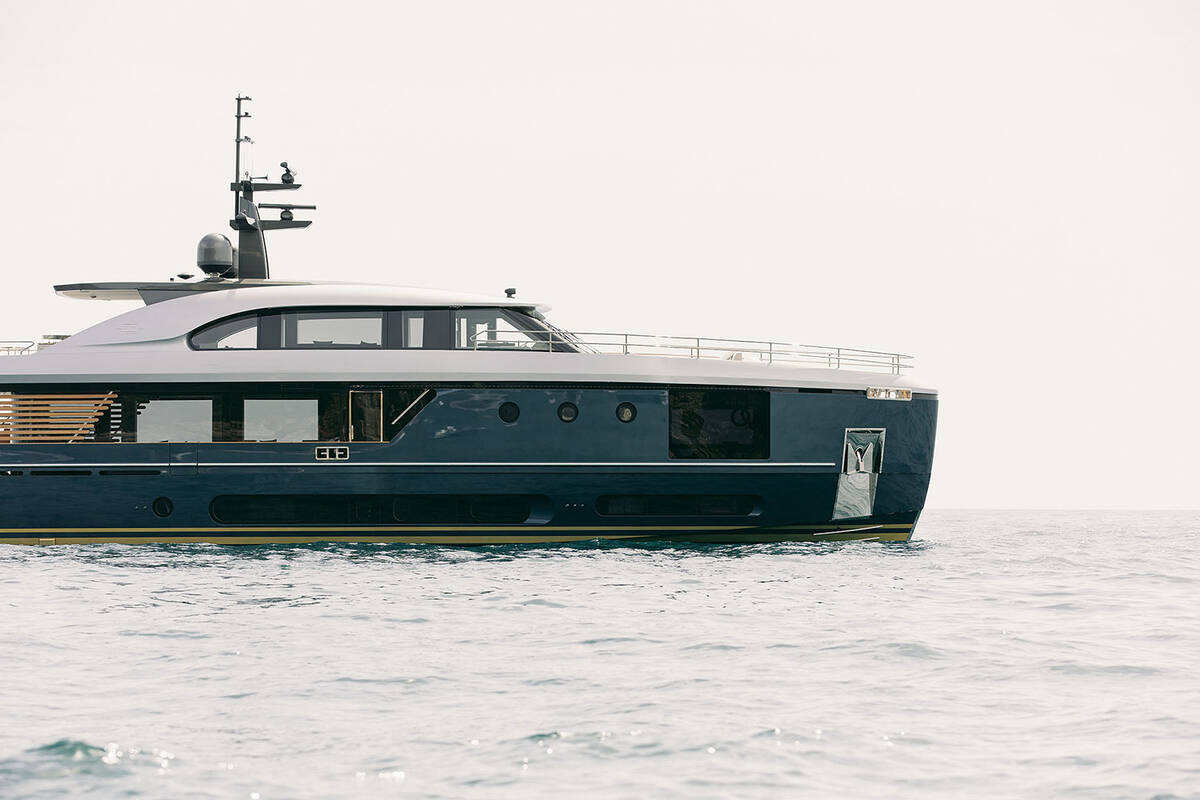

Magellano 30 METRI

Download brochure
Leave a request
0
11 934 805
Price
ex-VAT | options included
Tax status
29.63 m
Length overall
4Q/2026
Built
Italy
Country
View full specification

Contact us

You may also contact us in a most convenient form for you - call or write our Manager directly in a messenger to ask your question.
Igor Cherentaev
Yacht Broker

Conditional Survey and Seatrial

Inspection and sea trial of Magellano 30 METRI are subject to MYBA terms and conditions. For detailed and up-to-date information on this vessel, please contact us by filling in your contact details in the request form.

Specification

0
11 934 805
Price
ex-VAT | options included
Tax status
29.63 m
Length
Italy
Country
4Q/2026
Built
Builder
GRP
Material
199 t
Gross tonnage
29.63 m
Length overall
0.00 m
Hull length
0.00 m
Waterline length
7.00 m
Beam
0.00 m
Beam overall
0.00 m
Height
0 m
Height above waterline
2.03 m
Draft
0.00 m
Draft on keel
2 x 1550 Hp MAN
Engines
m/h
Engine hours
14 500 l
Fuel capacity
2 000 l
Water capacity
20.00 knot
Maximum speed
16.00 knot
Speed
900 l
Gray water tank
900 l
Holding tank capacity
0 nm
Range
0.00 l
Factory ballast capacity
0.00 t
Dry displacement
135.00 t
Displacement
0
Passenger capacity
10 + 5
Berths
5 + 3
Cabins
6 + 3
Head compartments
Keel
Ken Freivokh
Interior design
De Cotiis Architects
Exterior styling & concept

Equipment

A detailed technical specification, a list of optional equipment and other commercial information can be provided upon request.
Detailed technical specifications, a list of installed equipment, information about seasonal and maintenance work carried out can be provided upon request.
Detailed technical specifications, a list of available optional equipment, deadlines and ability to make changes in terms of layouts, optional equipment, interior design and other commercial information are provided upon request.
OPTIONALS
GENERAL

  • Engines 2 X 1550 HP MAN hp
  • Speed stabilizers (Fins)
  • Standard wood essence
  • Hydraulic Stern Thruster  ( 35KW/47HP)
  • Additional soundproof insulation in master cabin - aft bulkhead and ceiling
  • Additional soundproof insulation in master cabin - bow bulkhead
  • Oil Change system for main engines, gearboxes and generators
  • Double Racor filters for generators
  • Wing maneuvering stations ( both sides)
  • International Tonnage Certificate
  • Galvanized steel anchr 200kg, 16mm chains
  • Additional cleats with fairlead at midship
  • Hauling and launching system for jetski

ELECTRICAL SYSTEM

  • 400v-50hz electrical system
  • Upgraded generators to Kohler 55kW/50 Hz
  • Underwater lights - 4 on stern area and 2 on each side /Aqualuma)
  • One Gelndinning cablemaster

ELECTRONICS AND NAVIGATION
  • Simrad navigation electronics
  • Additional touchscreen alarms and boat managment in crew area
  • AIS ( class b )
  • ACR RCL-100 Searchlight
  • Navigation package Simrad/Navico - Silver version
  • Towing lights

AUDIO/VIDEO & CAMERAS

  • Videocamera package with fixed camera in aft cockpit, pivoting-tilting-zooming camera in engine room and predisposition for 8 cameras
  • Additional camera on the upper deck (fisheye)
  • Additional camera on the sides of the vessel (fixed x2 )
  • Option to control all the cameras on the Ipad
  • Standard Audio Video Package

EXTERIORS

  • Rubrail in rubber and steel around the swim platform and side cigars
  • Hull to be white gelcoat ( no painted hull)
  • Fixed Porthole ( no opening portholes)

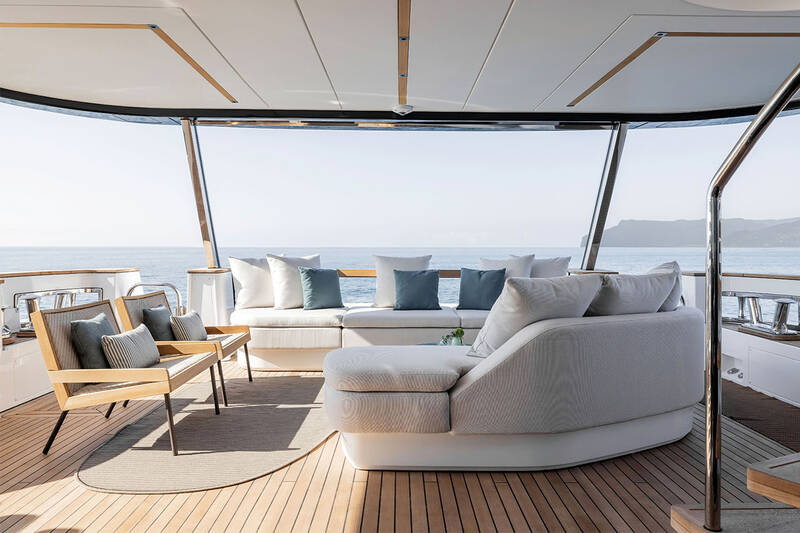

Aft Cockpit

  • Cockpit electric shade

Upper deck

  • Spot lights on the aft of the flybridge ( recessed inthe fiberglass ) - 6 LED
  • Teak floor on Upper Deck

INTERIORS

  • LED courtesy lights luxury package

Appliances

  • Additional fridge in the galley, total of 2
  • Fridge in the lower deck lobby
  • Winecooler (under counter unit)

CUSTOM REQUESTS
GENERAL

  • Additional insulation between crew area and master cabin

ELECTRICAL SYSTEM
  • 2 lights in garage
  • Electric power strip next to the TV in main deck saloon
  • Additional electrical sockets as listed below :
  • - 2 additional shouko on the bar cabinet in Upper deck cockpit ( outside )
  • - 3 additional shouko sockets in the storage cabinet on port side in the upper deck cockpit (inside)
  • - 2 additional shouko sockets in upper deck cockpit starboard of the entrance door to the saloon
  • - 4 additional shouko sockets in the upper deck saloon on the port side ( inside the cabinet)
  • - 4 additional shouko sockets in the upper deck saloon starboard side ( hidden behind the sofa)
  • - 4 additional shouko sokets in pilot station ( 2 per each side)
  • - 2 additional shouko sokets in the bow area in the lokers on the sides of the aft sofa ( 1 each side)
  • - 4 additional shouko sockets in the main deck cokpit on the sides ( 2 per each side )
  • - 4 additional shouko sokets in the main deck saloon behind the port sofa
  • - 4 additional shouko sockets in the main deck saloon behind the starboard sofa
  • - 3 additional shouko sockets in the galley on the backsplash, port side of the cooking top
  • - 2 additional shouko sockets in the engineroom
  • - 1 additional shouko socket in the garage positioned as far as possible from the garage door
  • 24V cable predisposition unde pilot stool

EXTERIORS

  • Handrails, rubrails, aft gates, teak elements suppors and electric curtain supports in stainless steel instead of standard black color
  • Side teak decorative elements support in stainless steel instead of black color
  • Scuppers in stainless steel instead of gelcoat

Upper Deck

  • Storage cabinet with electrical socket behind the bar in upperdeck cockpit

AUDIO/VIDEO & CAMERAS

  • Predisposition for playstation for main deck TV
  • Predisposition for future TV installation behid the port side sofa in main deck saloon

ELECTRONIC AND NAVIGATION
  • 19'' displays instead of standard ones

MISCELLANEOUS

  • Risk assesment for installation of toys in Garage

Layouts

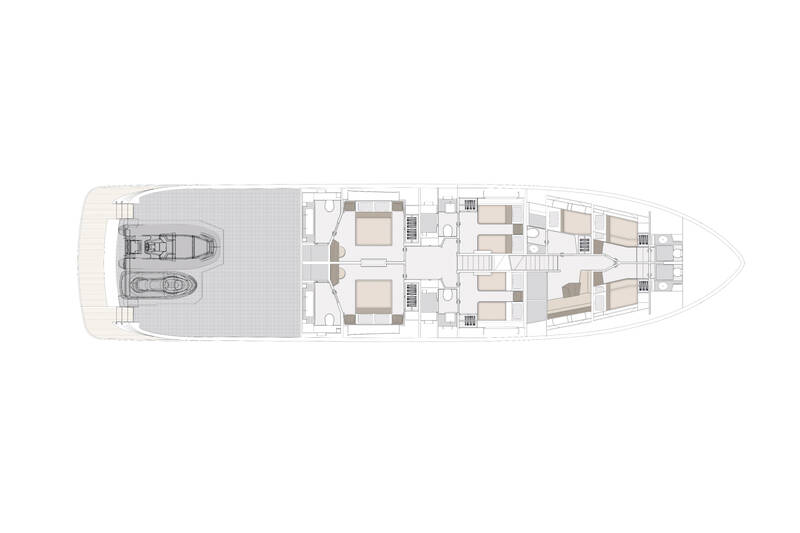

Lower deck

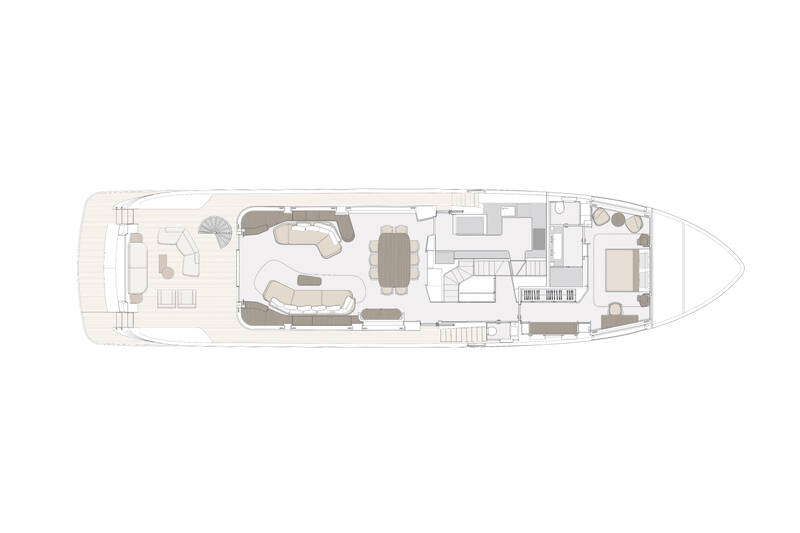

Main deck

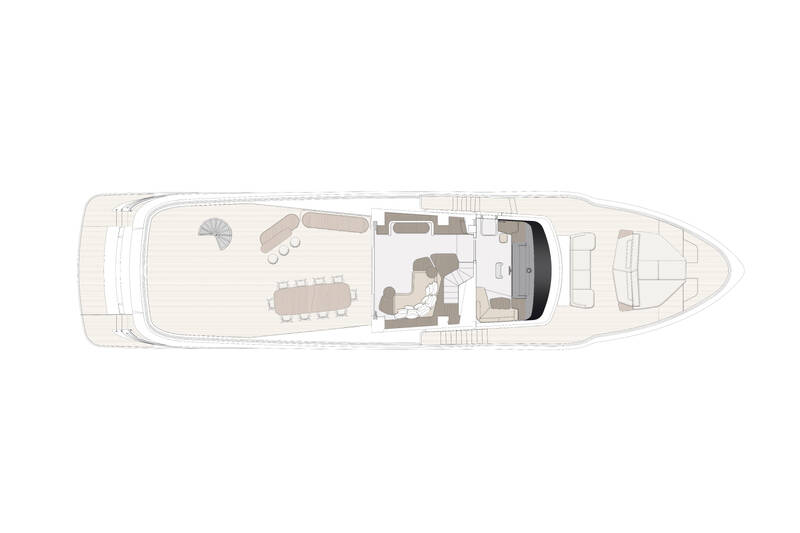

Upper deck
