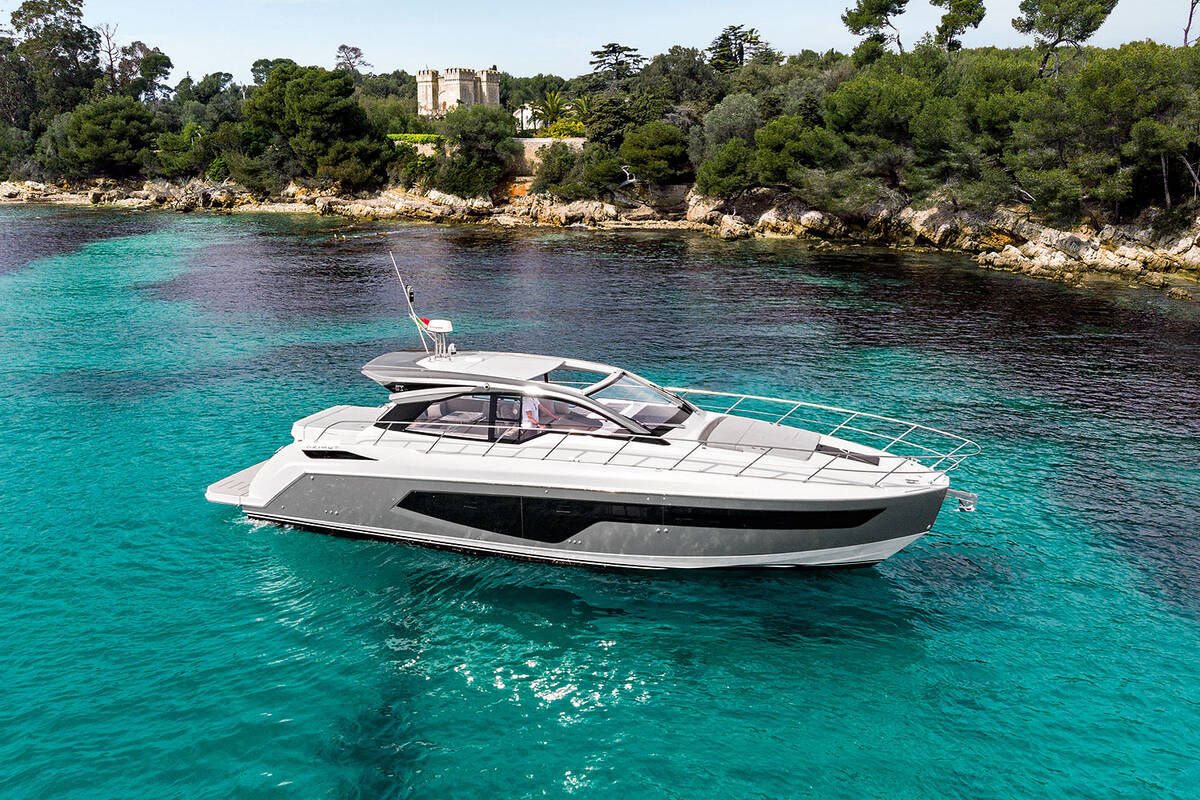

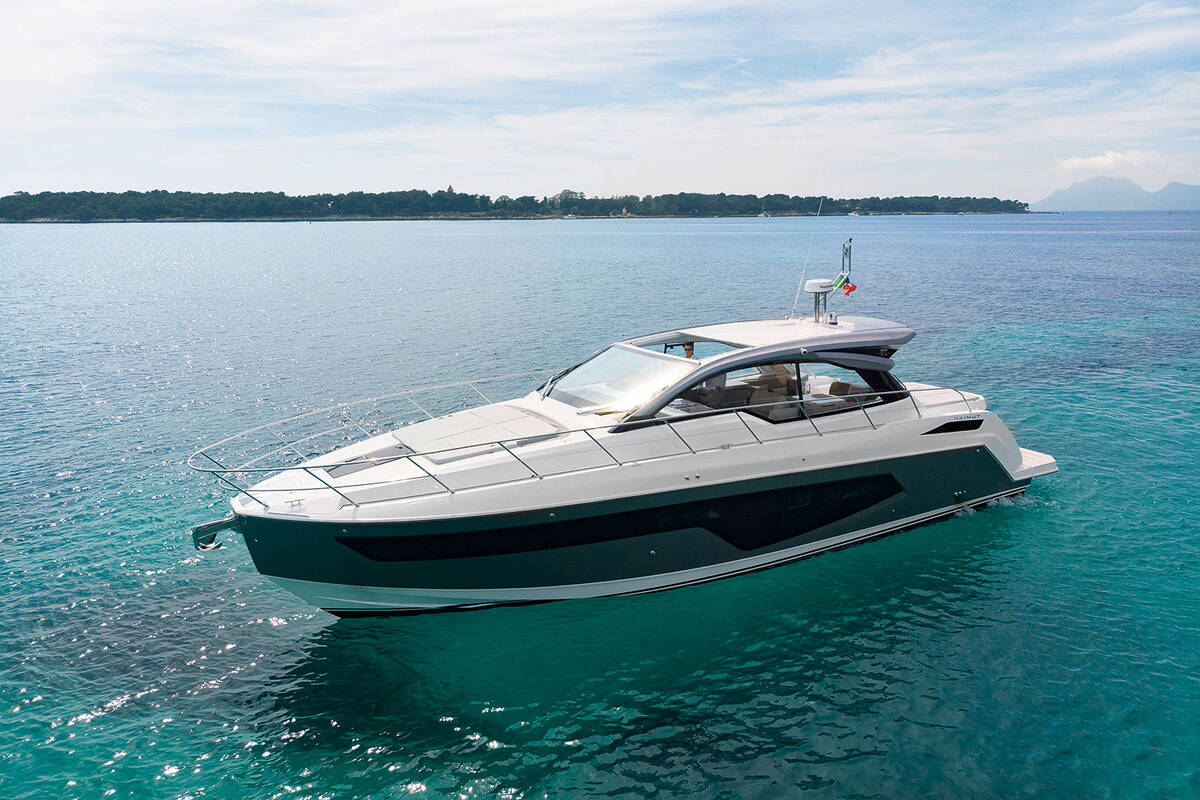

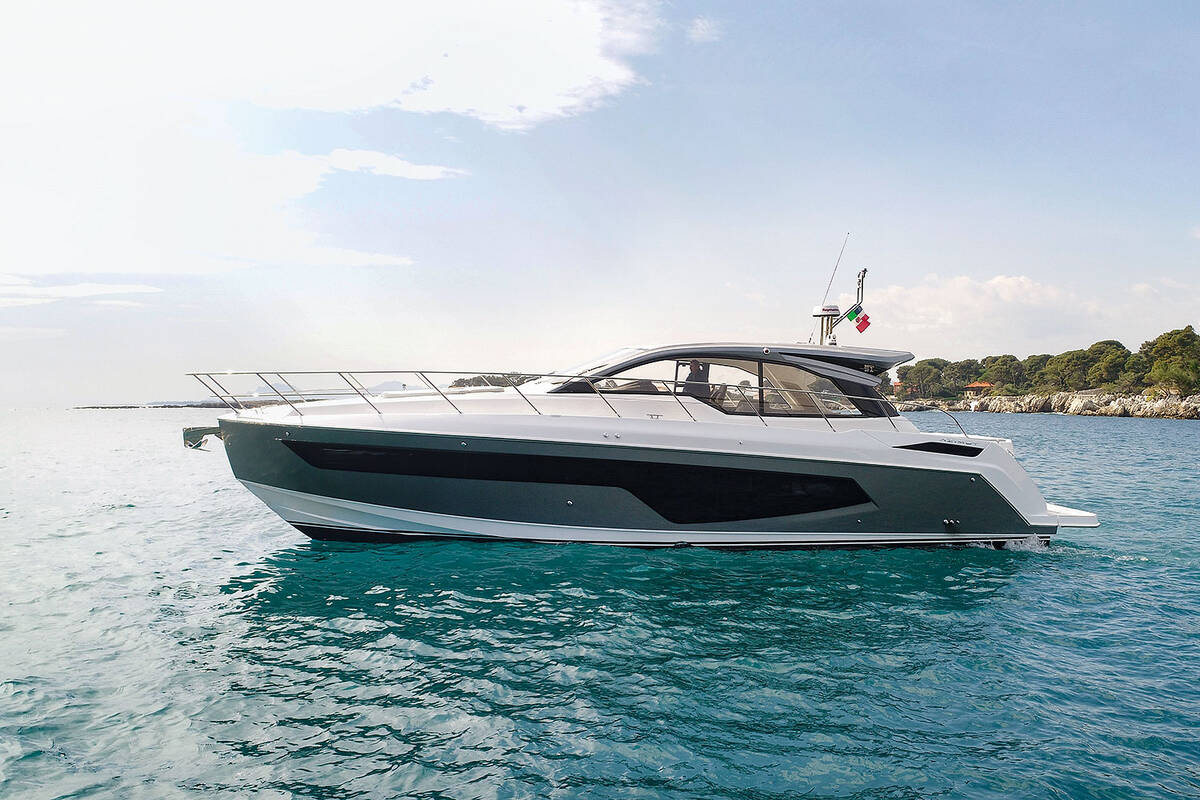

Exterior

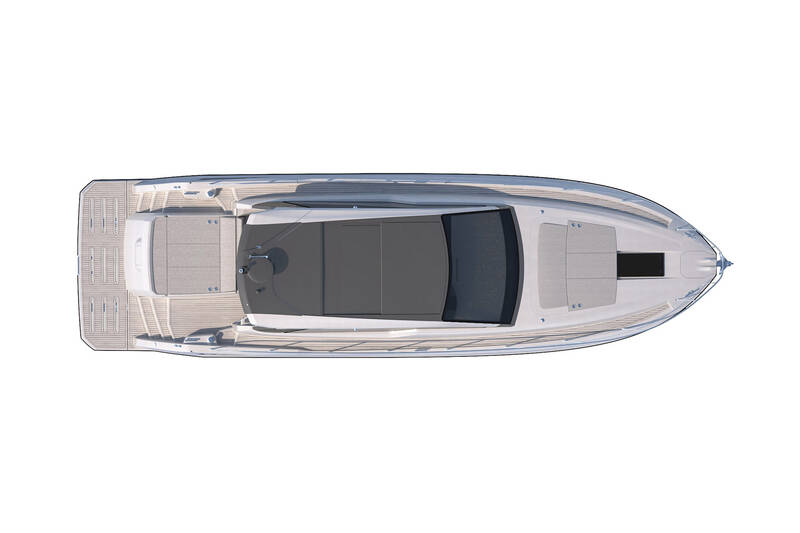

Hard top
- Electrically controlled roof with controls in the wheelhouse
- Stainless steel light mast
- Compliant navigation lights
- Searchlight

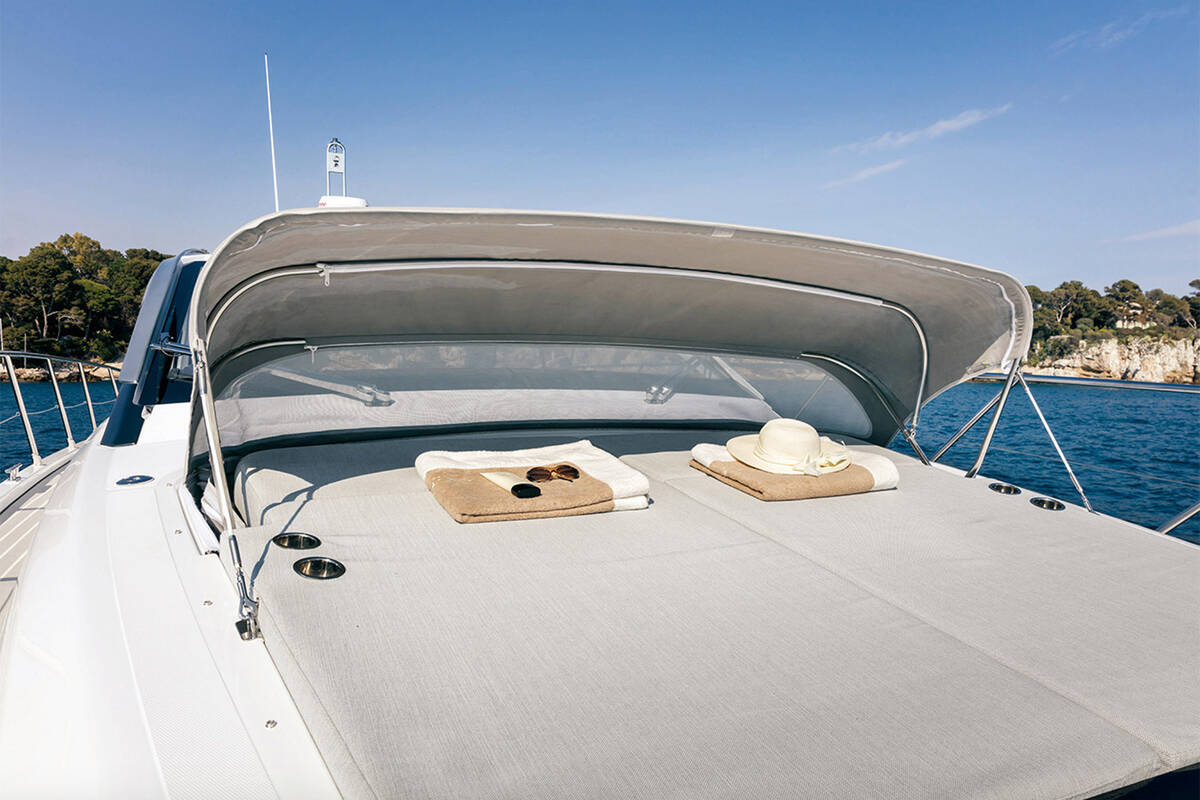

Bow
- Chain locker accessible through hatch provided with drainage
- Remote control for fore winch located inside the chain locker
- Fenders storage in the chain locker
- Stainless steel anchor line anti-rubbing protection
- Hatch (emergency exit from owner's cabin)
- Owner's cabin glass-skylight forward of the hatch
- Sunbed area with removable cushions in fabric for outdoors, with built-in glass holders
- 2 electric windscreen wipers
- Scuppers
Walk arounds
- Fresh water filling plug on port walk around
- Black rubber rub-rail
- Stainless steel pulpit with handrail
- Stainless steel shackles mounted vertically on the Hard Top at the walk arounds entrance

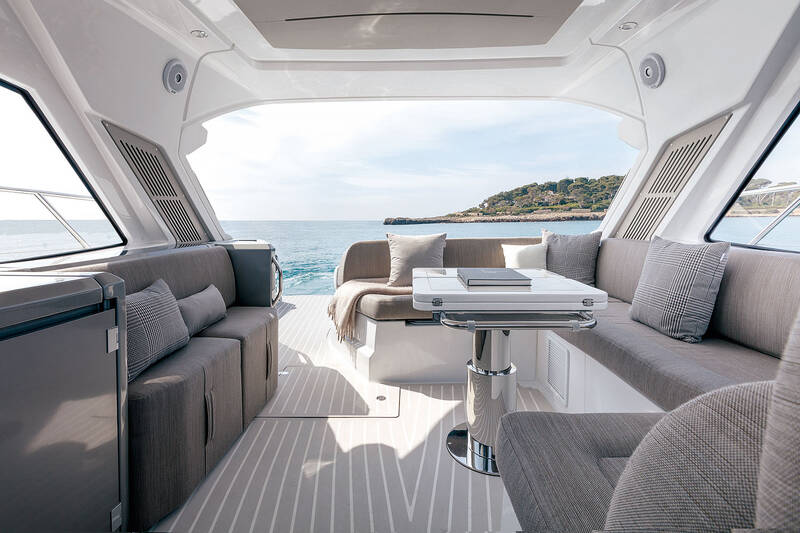

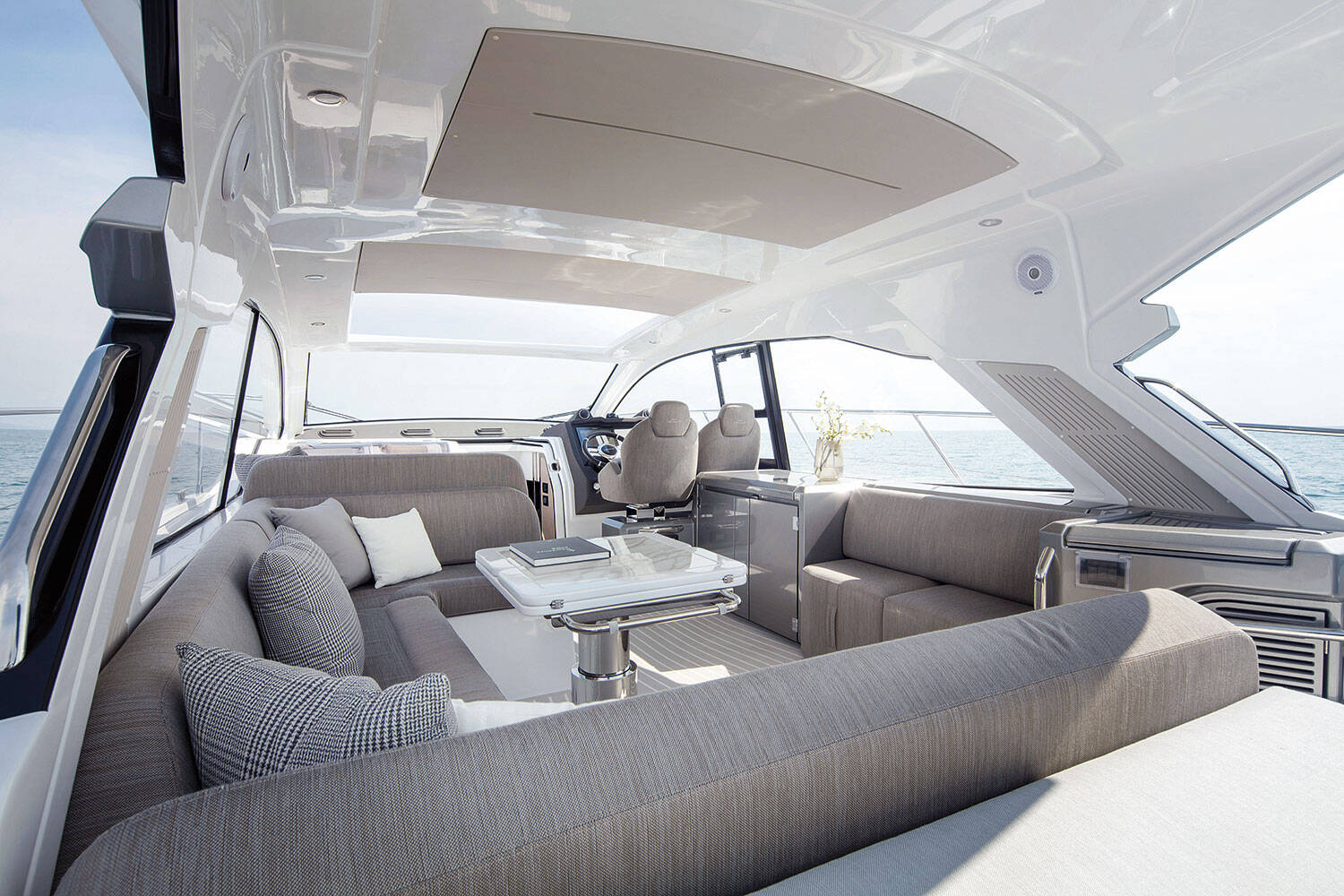

Cockpit
- 1 access on starboard side

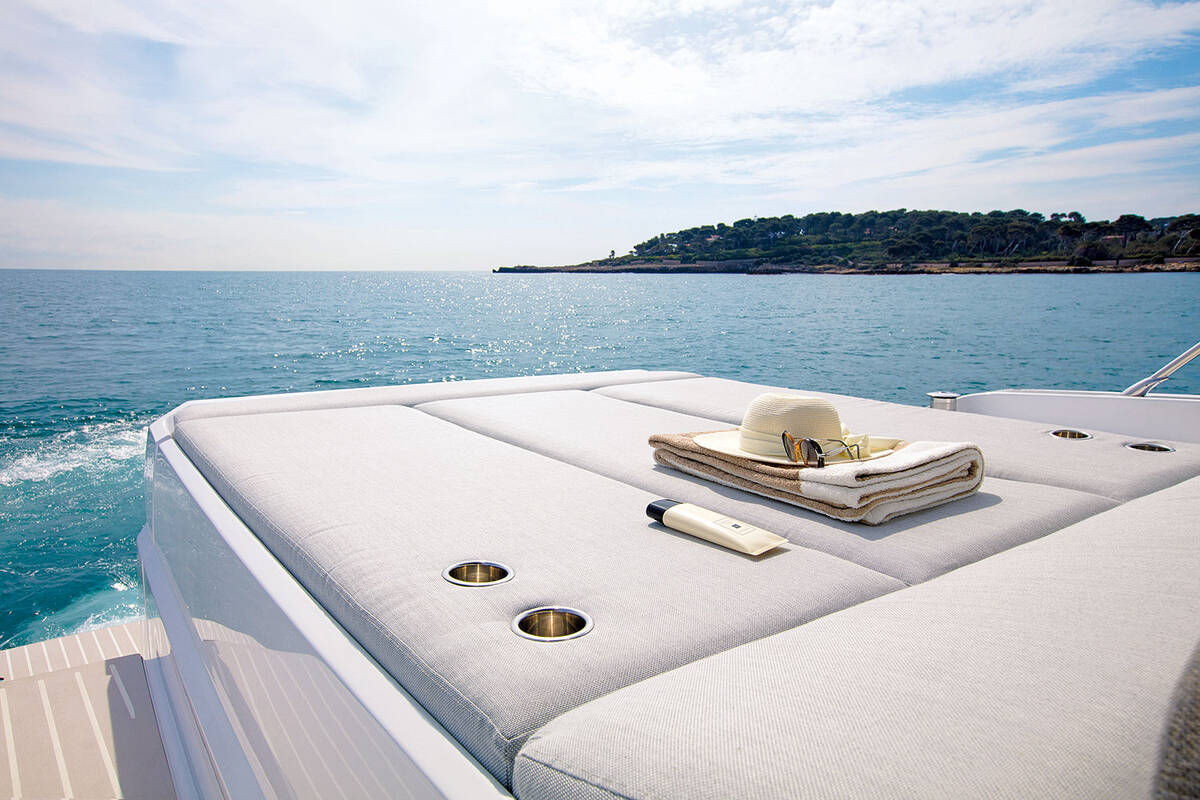

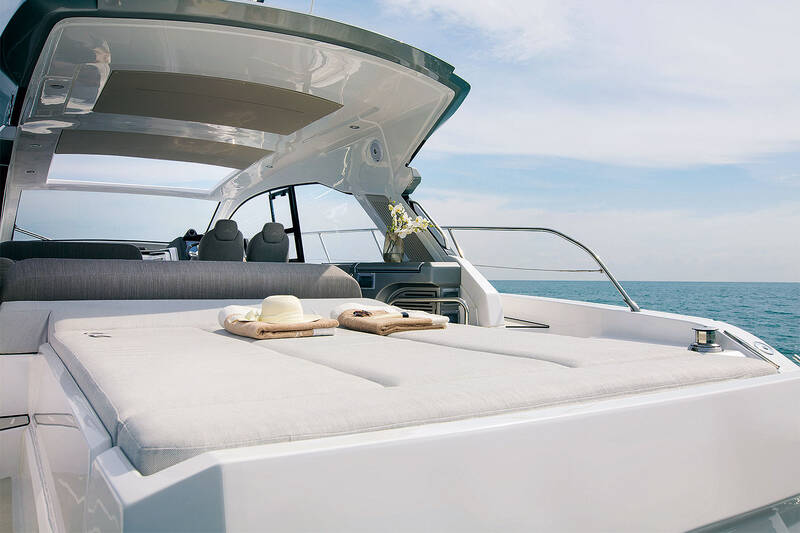

- Stern sunbed area with removable cushions in fabric, with built-in glass holders
- 1 "C" shaped sofa (in dining area), with backrests and relevant removable cushions in fabric
- GRP fixed table with extensions
- Scuppers
- Cabinet located on starboard side, composed of:
- -Built-in sink with collapsible faucet and worktop covered by upper hatch with piston
- -2 vertical lockers, one of which with waste holder
- -2-seat sofa with relevant removable cushions in fabric and horizontal locker underneath
- -Vertical compartment behind the sofa backrest for possible concealed TV set
- -Storage compartment covered by hatch, on aft side
- 2 additional lockers on port aft side, located under the cushions, one of which pre-arranged for storing a self-inflating raft, and both provided with piston
- GRP floor with non-slip finishing
- Engine compartment access through hatch located in front of the cabinet
- Hold access under stern sunbed area through three hatches with closure and piston, one of which in transparent Plexiglas, placed under the cushions
- Lighting with LED spotlights and bars and mounted recessed on the fabric- upholstered ceiling by means of a stainless steel frame.

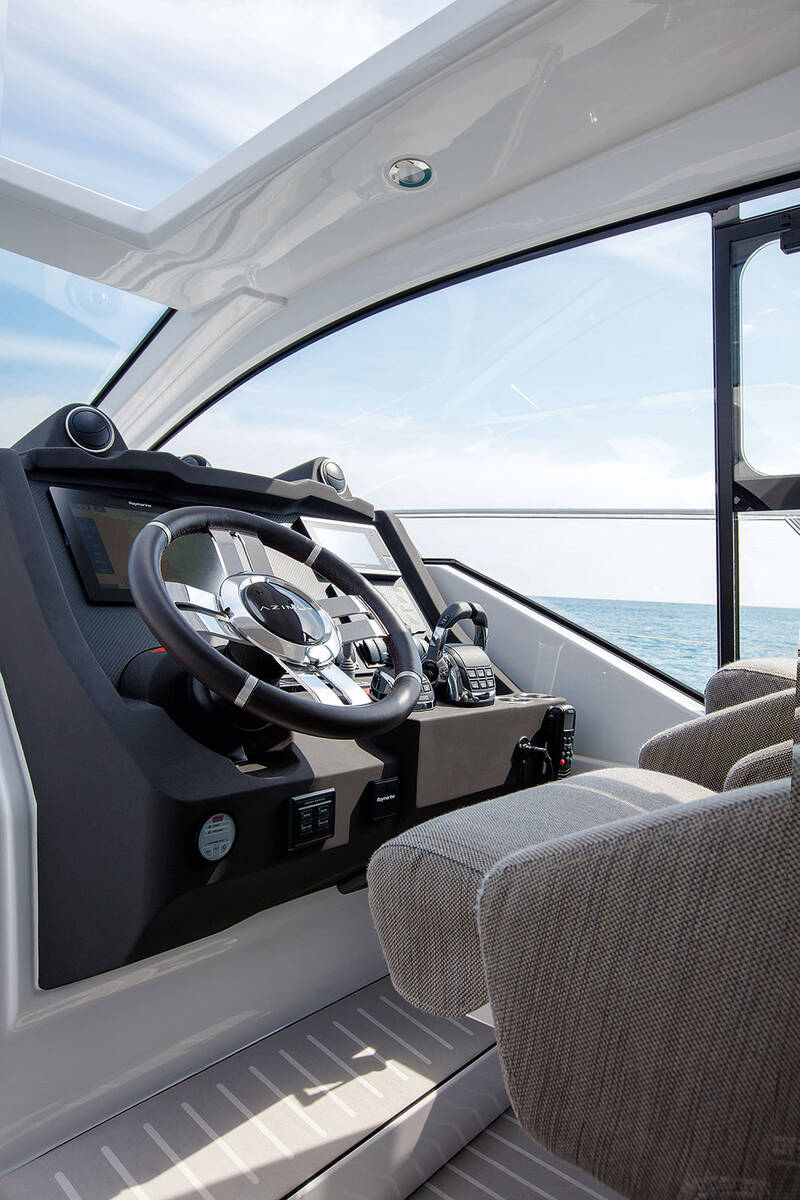

Wheelhouse
- Commander's seat
- Co-pilot seat to the left of the commander
- helm seats provided with adjustable sguab with stainless steel structure and padded cushion, and manual mechanism for horizontal adjustment of the pilot position
- Leather-covered steering wheel
- Dedicated lighting
- internal dashboard consisting of:
- -Volvo Penta engine display
- -electronic navigation instruments, BRONZE version
- -Engine throttles
- -VHF
- -Magnetic compass
- -Bow thruster controls
- -Audible alarm controls
- -USB socket
- Adjustable outlets for air conditioning delivery
- 2 glass holders
- GRP footrests
- GRP floor with non-slip finishing

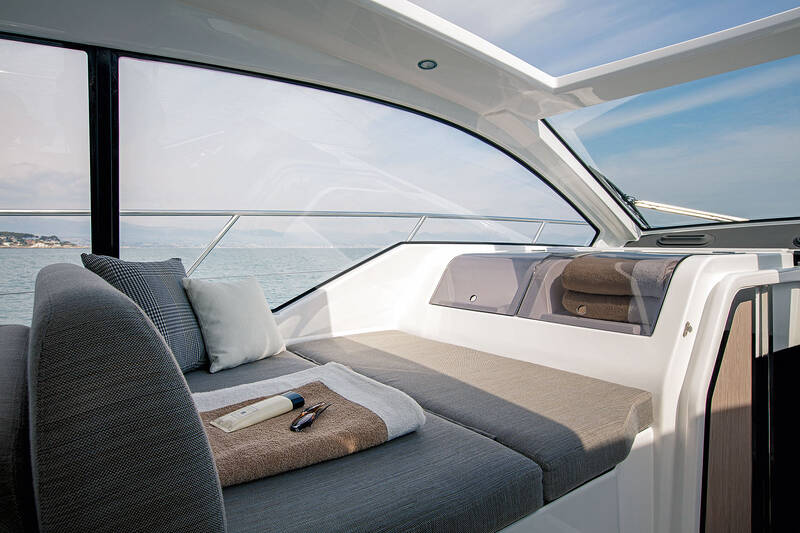

To the left of the wheelhouse
- 2 lounging chairs on port fore side, to the left of the compartment leading to lower deck, made with removable cushions in fabric
- 2 additional storage compartments on port fore side, to the left of the compartment leading to lower deck, both provided with piston for keeping the transparent Plexiglas hatches lifted
- 2 additional horizontal lockers, on port fore side, located under the lounging chair
- GRP floor with non-slip finishing
- At the center of the boat, between the wheelhouse and the lounging chairs, is the ladder leading to the lower deck, accessible through a white Plexiglas sliding companionway.
Platform/Hold
- Large hold that can be used as garage if the hatch hydraulic lifting piston is purchased
- Black rubber rub-rail
- Refueling plugs on both sides of the deck gunwale
- External GRP steps for accessing the cockpit, starboard side
- External GRP steps for accessing the port walk around
- 1 stainless steel and Plexiglas gate that separates the steps from the cockpit, starboard side
- External shower head, on starboard side
- GRP floor with non-slip finishing
- Manual removable swimming ladder, located under the center of the platform, aft side
- 2 lockers with hatch under the mooring stations

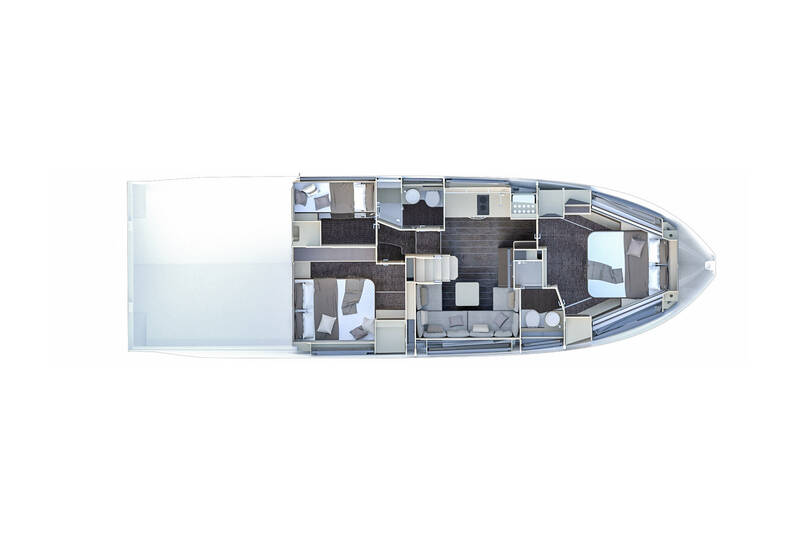

Interior

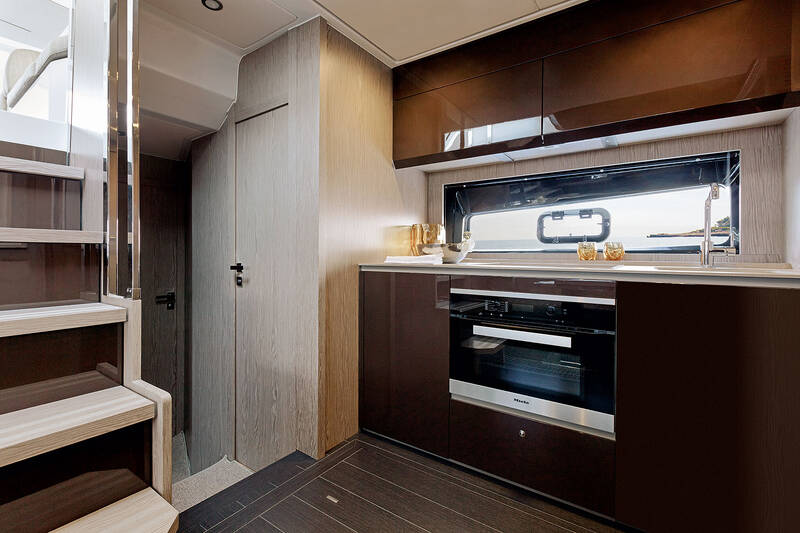

Galley
- Located on port side
- Cabinet with compartments for house-hold appliances and 2 drawers under the sink with laminated worktop
- Column cabinet for fridge, forward in the owner's cabin access corridor, port side
- Column cabinet with shelves, forward in the owner's cabin access corridor, starboard side
- 2 storage wall units on the bulwark above the windows provided with Venetian blinds and portlight
- Stainless steel sink with faucets
- Fridge/freezer(220 l)
- Extractor hood
- Microwave oven (20 I)
- Ceramic glass 2-hob range
- Laminate flooring
- Lighting with LED spotlights and bar mounted recessed on fabric-upholstered ceiling
- Concealed sockets

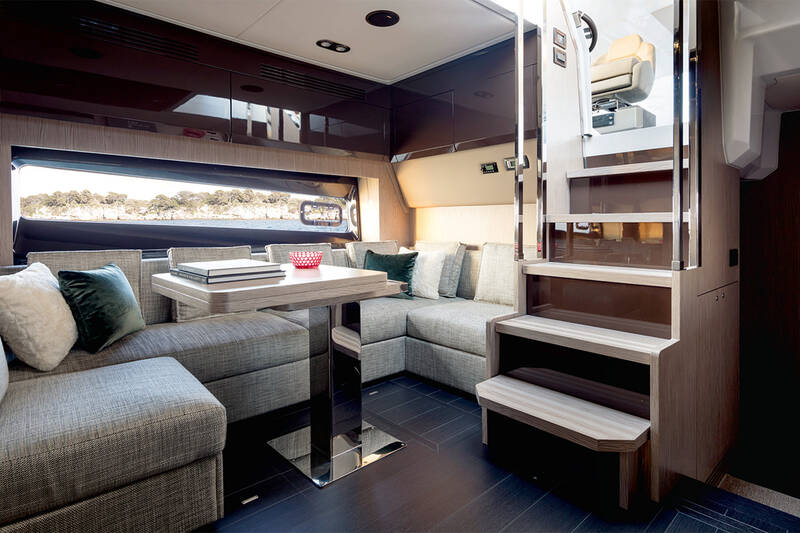

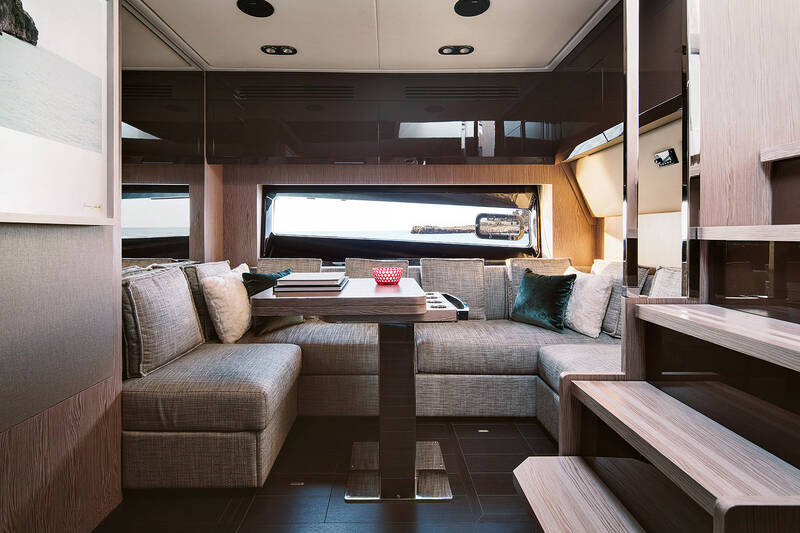

Dinette
- Located on starboard side
- 1 5-seater "C" shaped sofa with lockers arranged longitudinally on starboard side
- l table with fixed stainless steel base and wooden top
- 2 storage wall units on the bulwark above the windows provided with Venetian blinds and portlight
- Full length mirror, fore side
- Fabric and laminate upholstered bulwarks
- Carpeted floor
- Lighting with LED spotlights mounted recessed on fabric-upholstered ceiling
- LED courtesy lighting under the steps
- Sockets

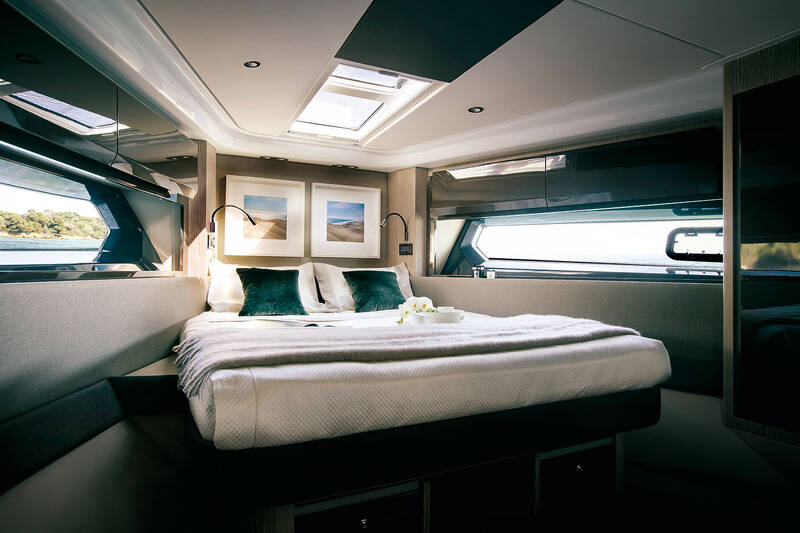

Owner’s cabin
- Located at the bow
- Double bed at the center of the boat with locker and 2 chest of drawers with shelves
- Mattress, pillows and bedspread
- Fabric-upholstered headboard
- 2 reading lights
- 2 bedside tables
- 2 storage wall units on the bulwark above the windows provided with Venetian blinds and portlight

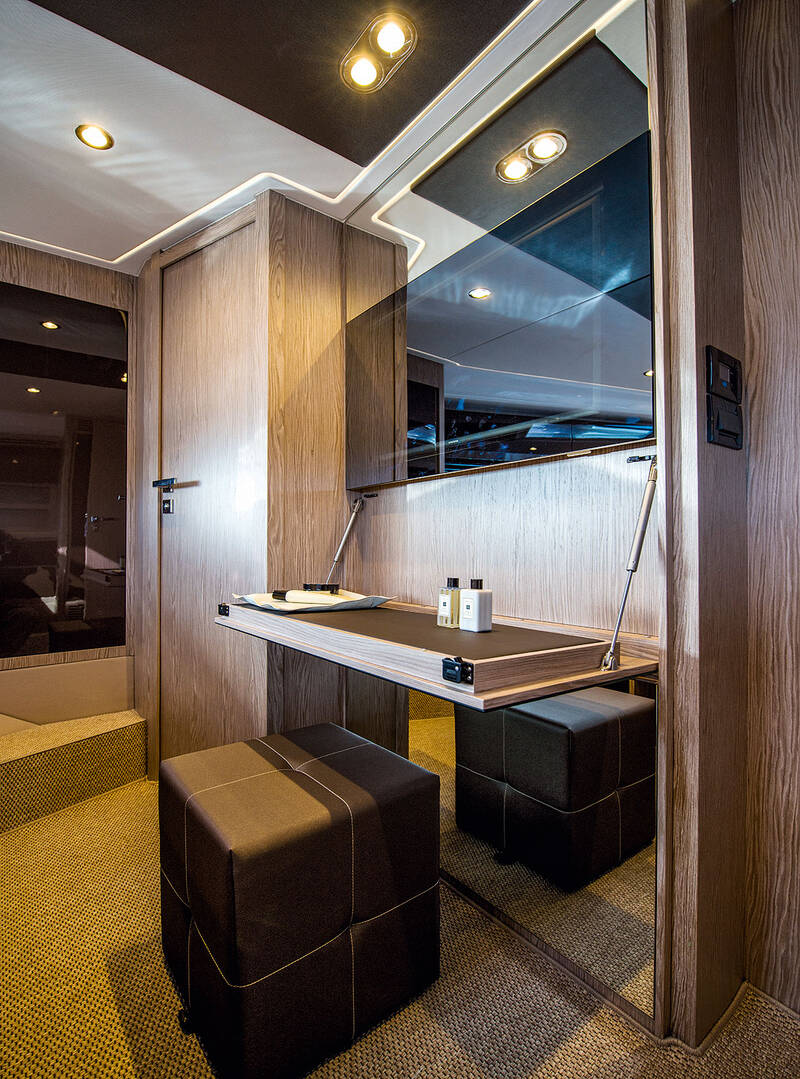

- Vanity with collapsible shelf and pouf concealable under the bed
- 2 wardrobes with hanger bar and mirror
- 1 chest of drawers on port bulwark forward of the wardrobe
- Emergency escape hatch in fore sunbed area
- Fixed skylight forward of the emergency escape hatch
- Fabric and laminate upholstered bulwarks
- Carpeted floor
- Direct access to dedicated head
- Lighting with LED spotlights and bar mounted recessed on fabric-upholstered ceiling
- Sockets

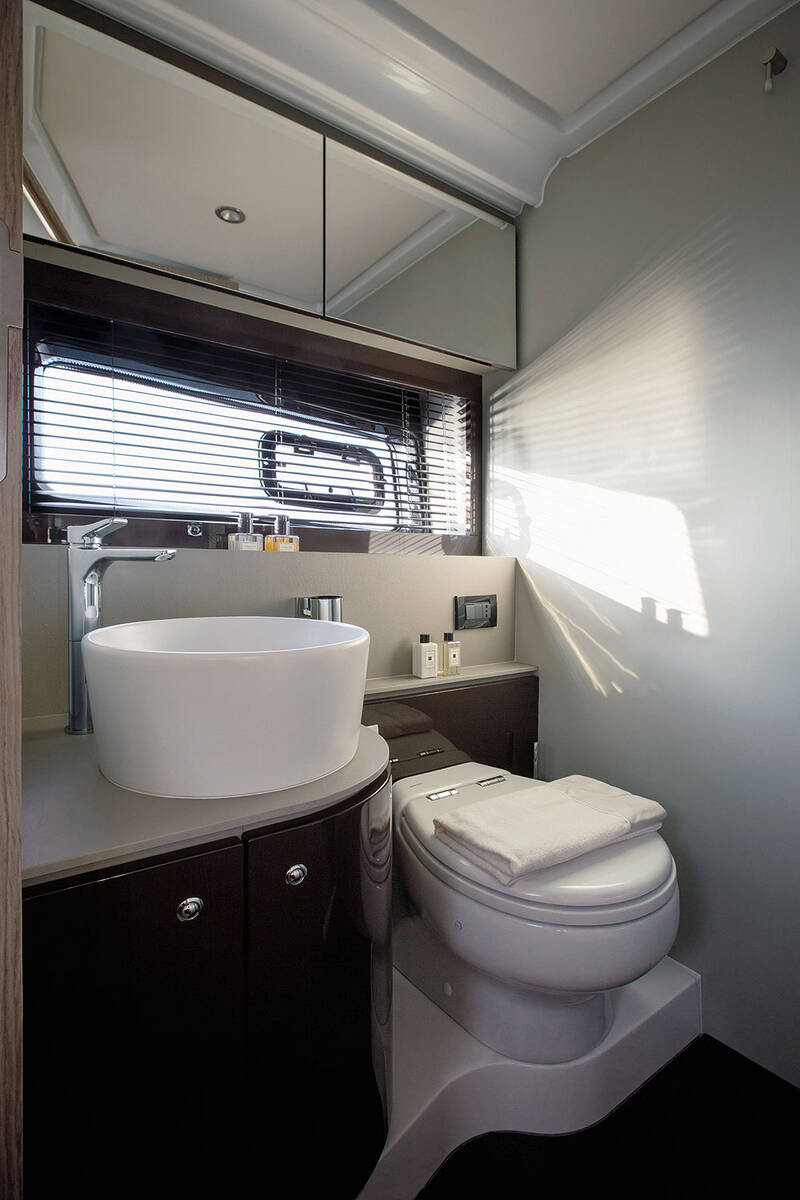

Owner's head
- Located on starboard side
- independent access from owner's cabin
- Ceramic washbasin with laminated top
- Faucets
- Head accessories
- Wall unit above sink with mirror
- Storage under the washbasin
- TOILET
- Central shower enclosure with:
- -glass access door and aluminum frame
- -shower enclosure walls covered with laminate
- -GRP floor with non-slip finishing
- -thermostatic mixer
- -hand-held and ceiling-mounted shower head
- -ceiling-mounted recessed LED lighting bar
- Side windows with recessed portlight, provided with Venetian blind
- Laminated floor
- Lighting with ceiling spotlight and recessed LED bar above the wall unit
- Sockets

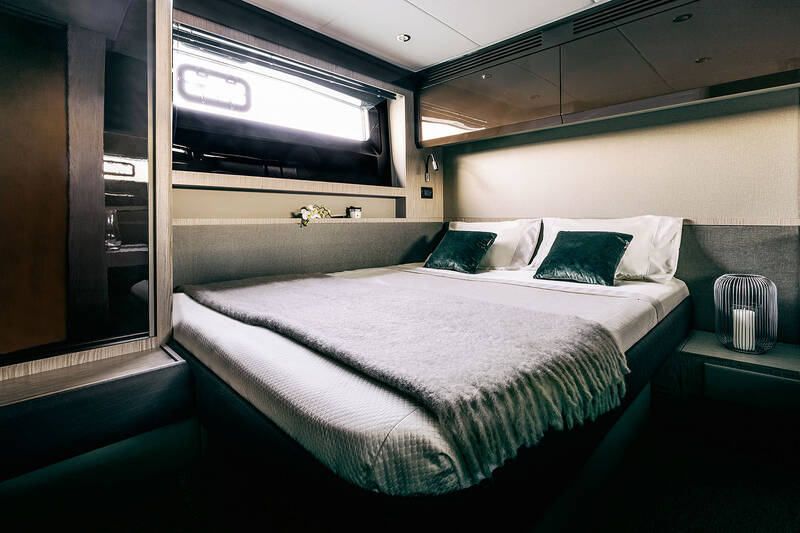

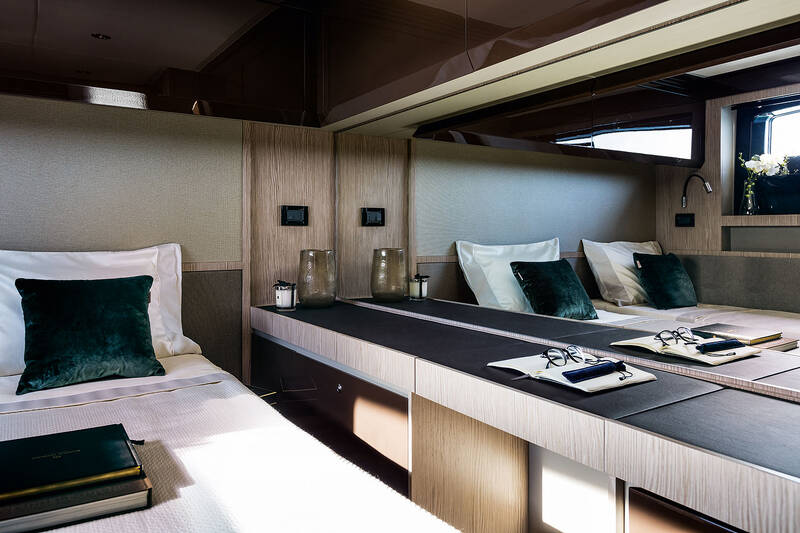

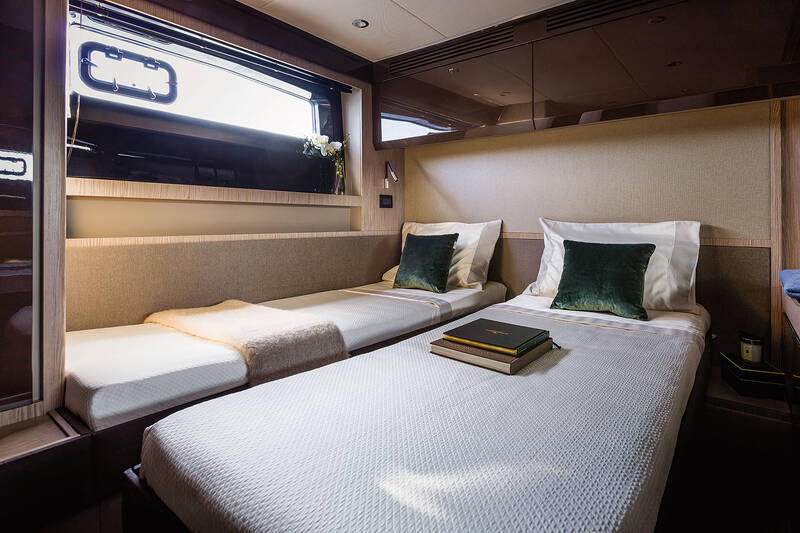

VIP cabin
- Located on starboard side
- Double bed, which can be transformed into two single beds, placed longitudinally on the bulwark, with locker below
- Mattress, pillows and bedspread
- Fabric-upholstered headboard
- 2 reading lights
- 2 bedside tables, one of which is concealed when the bed is in the double bed configuration
- 1 wardrobe with hanger bar and mirror
- Wardrobe, longitudinal on port side, with vanity and chest of drawers
- 2 drawers, fore side
- 2 wall units, aft and midship on port side
- Side windows with portlight, provided with Venetian blind
- Fabric and laminate upholstered bulwarks
- Carpeted floor
- Access to head through corridor
- Lighting with LED spotlights mounted recessed on fabric-upholstered ceiling
- Sockets

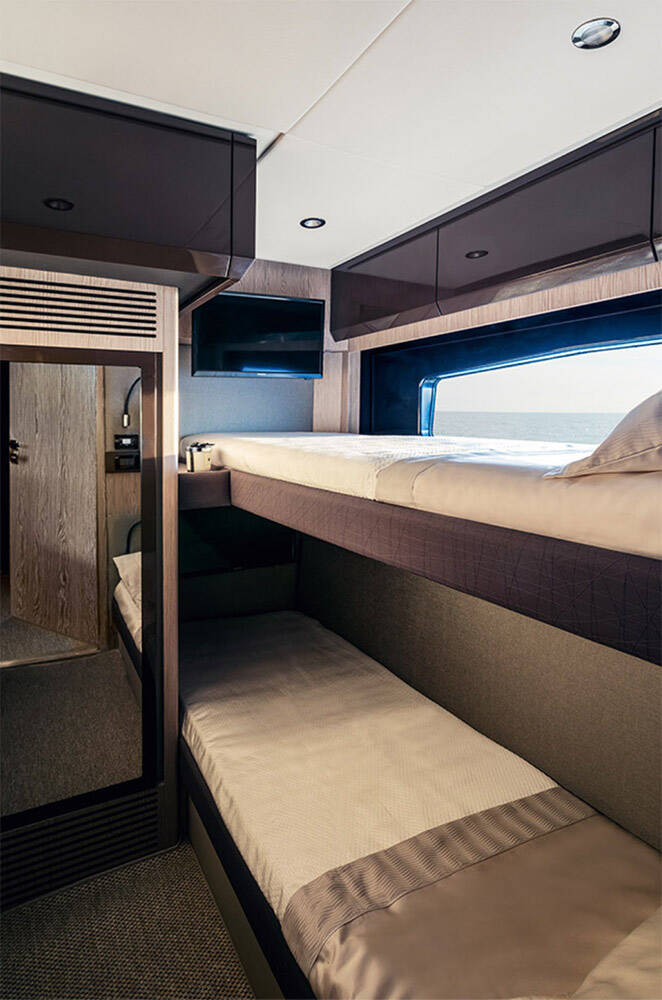

Guest cabin
- Located on port side
- 2 single bunk beds
- Mattress, pillows and bedspread
- 2 reading lights
- 1 shelf at the foot of the upper bed
- 1 wardrobe with hanger bar, shelf, and mirror
- 1 wall unit on bulwark, above the upper bed
- 1 locker on the lower bed plane
- Side windows with recessed portlight, provided with Venetian blind
- Fabric and laminate upholstered bulwarks
- Carpeted floor
- Access to head through corridor
- Lighting with LED spotlights mounted on fabric-upholstered ceiling
- Socket

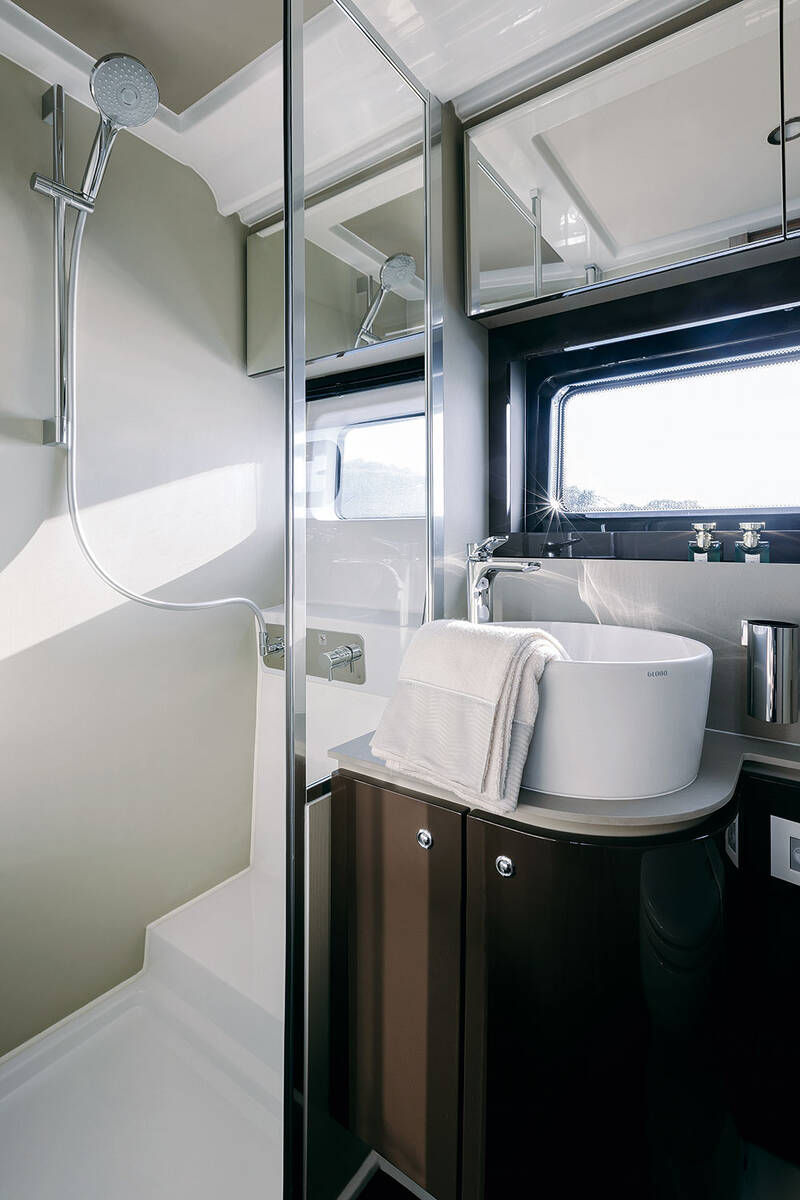

Guest head
- Located on port side
- Ceramic washbasin with laminated top
- Faucets
- Head accessories
- Side wall unit with mirror
- Storage under the washbasin
- TOILET
- Shower enclosure with:
- -glass access door and aluminum frame
- -shower enclosure walls covered with laminate
- -GRP floor with non-slip finishing
- -thermostatic mixer
- -hand-held shower head
- -wall unit
- -ceiling spotlight
- Side windows with portlight, provided with Venetian blind
- Laminated floor
- Lighting with ceiling spotlight and recessed LED bar above the wall unit
- Sockets
Systems
Electric system
- Shore-powered power supply
- DC electric panel: 3 installed on the fore bulkhead of the engine room, in the aft wall unit of the dinette and under the central seating area of the dinette
- AC electric panel: 2 installed on the fore bulkhead of the engine room and in the aft wall unit of the dinette
- battery cut-out control panel: 1 installed in the aft wall unit of the dinette
- Onboard voltages:
- -230V-50 Hz AC
- -24 V DC from battery set
- -12 V DC from battery set and from DC/DC voltage reducer
Generator
- 1 single-phase 3.5 kW/230 VAC - 50 Hz generator for EU system
- Remote start up
Shore power sockets
- EU: 1 3P 50A socket
- The AC power sources terminate on the main electric panel in the engine room, for the 230 V network. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches.
Batteries
- Services: 6 90 Ah@12V DC
- Engines: 4 90 Ah@12V DC
- Generator: 1 90 Ah@12V
- Service/service backup / engine starting battery chargers: 1 60 Ah 24V
- Genset start up battery charger: 112 Ah 12V
Lights and sockets
- 230 V AC sockets for main utility power supply, EU type
- USB sockets
- Internal lighting: 24V LED type
- External lighting: 24V LED type
Electronic navigation instruments
- BRONZE version
- For a detailed list of alternative/additional eguipment available, please refer to the Optionals price list.
Bilge system
- Main system composed of 3 automatic and independent pumps located in each watertight compartment: 2 in the engine room (fore and aft), 1 (central) under VIP cabin entrance floor
- Secondary or auxiliary system, composed of 2 manual pumps with 3 suction points located as follows: 2 in the engine room (fore and aft), 1 (central) under VIP cabin entrance floor
Fire extinguishing system
- 1 manual system activation on the vertical wall between the wheelhouse and the helm seat
- System indicator/reset on instrument board under the steering wheel
- 1 1000 feet gas extinguisher in the engine room
- Dry chemical extinguishers located in internal spaces
Fuel system
- 2 plastic fuel tanks located longitudinally on port and starboard sides in the engine room, total 1440 I (serial numbers Oil - 012)
- 2 fuel level electronic sensors (one per tank) monitored through indication in the wheelhouse
- 1 fuel level optical gage on port tank
- 2 single Racor settling filters for engines
- 1 Racor filter for generator
- 2 tank vents on bulwark, one per side
- Remote engine diesel shut-off via 24 V solenoid valve
- Remote generator diesel shut-off via 12 V solenoid valve
- Refueling plugs on both sides of the gunwale/deck column
- Possibility of leveling diesel from one tank to the other, using a communicating pipe
- Possibility of refueling both diesel tanks from a single refueling plug, by means of the communicating pipe.
Fresh water system
- 450 I plastic tank under the bow tray, under the owner's cabin floor, aft side
- Water refill through caps located in the fore part of the port walk around
- Water pressure pump unit located in the engine room, port aft side (24 V - 50/60 Hz) with electronic control
- 60 I water heater located in the engine room, starboard aft side
- Fresh water toilet flushing
- 1 level sensor with electronic indicator on the 24 V electric panel in dinette, starboard aft side
- The system can be isolated by means of ACORN type manifolds located under the galley/dinette floor, fore side.
Black water system
- 2 Tecma toilets with direct outboard discharge
Gray water system
- 10 I plastic tank located under the dinette floor
- 1, 17.5 l/min pump
- 1 collection tray under the corridor floor in front of the guest head
Seawater system
- Engine cooling system: includes 1 seawater intake with filter and 2" ball valve
- Generator cooling system: includes 1 seawater intake with filter and 1" ball valve
Ventilation/extraction
- 2 extractors located abaft the engine room, with 100 mm pipe that conveys the air outside through openings on hull bulwark.
Equipment
- 1 telescopic boat hook
- 2 anchor lines
- 18 m fender lines
- 1 anchor chain stopper
- 6 fenders
- 6 black fender covers
- 1 Owner's Manual
- 1 AZIMUT document holder
- 1 wooden model of the boat
- 1 AZIMUT warranty service booklet
- 2 floating key-rings
- 1 bag (with logo) for storing the manuals
- 1 remote control holder (with logo)
- 1 bag for holding the shower tube
